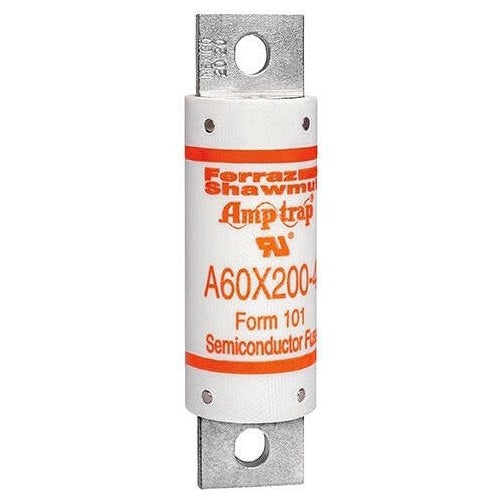

Mersen-Ferraz A60X200-4 600V Semiconductor Fuse

Overview

Mersen-Ferraz A60X200-4 600V Semiconductor Fuse

Product Specifications

• UPC: 78200194331
• Terminal Type: Blade
• Diameter: 1.22 Inch
• Length: 4.41 Inch
• Approval: UL E60314
• Additional Information: Body/Insulating Material Glass Melamine Laminate; Connection/Terminal Material Tin Plated Brass; Mounting Type Bolt-In; Application Protection of Heavy Traction and Electrochemical, Rectifier, Heavy Duty Equipment
• Catalog Number: A60X200-4
• Brand Name: Amp-Trap[R] Foam 1
• Model: A60X
• Type: Round, Semiconductor
• Characteristics: Fast Acting, High Speed
• Voltage Rating: 600 Volt AC
• Current Rating: 200 Amp
• Interrupting Rating: 200 Kiloamp (AC)
• Catalog Description: HIGH SPEED FUSE AMP-TRAP A60X 600VAC 200A BOLTED BLADE
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 4.41 Inch; UL E60314 Approval; 600 Volt AC Voltage Rating; 1.22 Inch Diameter; 200 Kiloamp (AC) Interrupting Rating; 200 Amp Current Rating; Blade Terminal Type; Fast Acting, High Speed Characteristics; AMP-TRAP[R] Brand; Body/Insulating Material Glass Melamine Laminate; Connection/Terminal Material Tin Plated Brass; Mounting Type Bolt-in; Application Protection of Heavy Traction and Electrochemical, Rectifier, Heavy Duty Equipment; A60X Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001943318
• SKU Name: frz a60x2004
