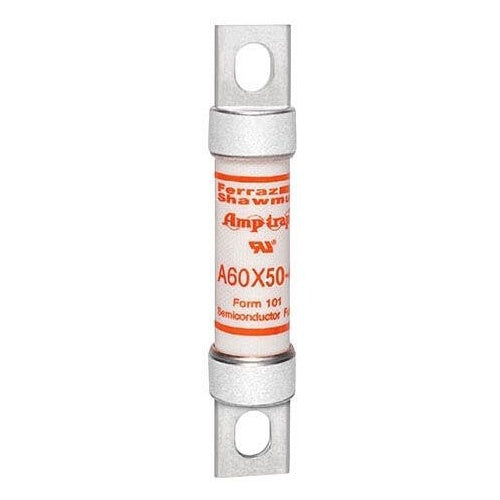

Mersen-Ferraz A60X50-4 600V Semiconductor Fuse

Overview

Mersen-Ferraz A60X50-4 600V Semiconductor Fuse

Product Specifications

• UPC: 78200194359
• Terminal Type: BLADE
• Diameter: 0.81 INCH
• Length: 4.38 INCH
• Approval: UL
• Additional Information: APPLICATION ELECTROCHEMICAL RECTIFIER, HEAVY DUTY EQUIPMENT AND HEAVY TRACTION; CONTROLLED ARC VOLTAGE; CURRENT LIMITING
• Catalog Number: A60X50-4
• Brand Name: AMP-TRAP.
• Model: A60X
• Type: ROUND, SEMICONDUCTOR
• Characteristics: FAST ACTING
• Voltage Rating: 600 VAC
• Current Rating: 50 AMPERE
• Interrupting Rating: 100 KILOAMPERE
• Catalog Description: HIGH SPEED FUSE AMP-TRAP A60X 600VAC 50A BOLTED BLADE
• Category: Semicond,Rectifier,Hi-Voltage Fuses
• Full Technical Description: Round, Semiconductor Type; 4.38 Inch; UL Approval; 600 VAC Voltage Rating; 0.81 Inch Diameter; 100 Kiloampere Interrupting Rating; 50 Ampere Current Rating; Blade Terminal Type; Fast Acting Characteristics; Amp-Trap. Brand; Application Electrochemical Rectifier, Heavy Duty Equipment and Heavy Traction; Controlled Arc Voltage; Current Limiting; A60X Model
• Manufacturer: MERSEN (FORMERLY FERRAZ SHAWMUT INC)
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: North American Style Fuse
• Unspsc: 39121628
• UPC 12 Digit: 782001943592
• SKU Name: frz a60x504
