Overview

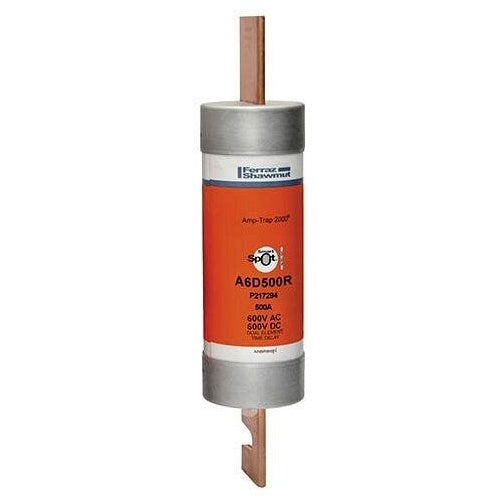

AMP-TRAP® 2000 SmartSpot® A6D500R Current Limiting Low Voltage North American Time Delay Power Fuse, 500 A, 600 V AC, 200 kA Interrupt, RK1 Class, Cylindrical Body

Product Specifications

• Catalog Number: A6D500R
• UPC / GTIN: 782001992293
• Manufacturer Brand: Mersen
• UNSPSC: 39121604
• Features: Solid state SmartSpot® indicator; Time delay for motor starting and transformer inrush currents without nuisance opening; 300 kA interrupting rating, self certified (UL witnessed); Extremely current limiting for low peak let-thru current; Easy 2-to-1 selectivity for prevention of nuisance shutdowns and "blackouts"; Rejection style design prevents replacement errors (when used with recommended fuse blocks); High visibility orange label gives instant recognition; Reduced inventory by taking the place of class RK5, K and H fuses; Metal embossed date and catalog number for easier traceability and lasting identification; Fiberglass body provides dimensional stability in harsh industrial settings
• Amperage Rating: 500 A
• Body Size: 3-1/8 in Dia x 13-3/8 in L
• Body Type: Cylindrical
• Class: RK1
• Country of Origin: Mexico
• Element: Dual
• ETIM: EC002704
• Indicating/Non-Indicating: Indicating
• Interrupt Rating: 200 kA
• Material: Fiberglass
• Mounting Type: Clip
• Rejection/Non-Rejection: Rejection
• Series: A6D-R
• Terminal Type: Blade
• Type: Current Limiting Low Voltage North American Time Delay
• Voltage Rating: 600 V AC | 600 VAC
