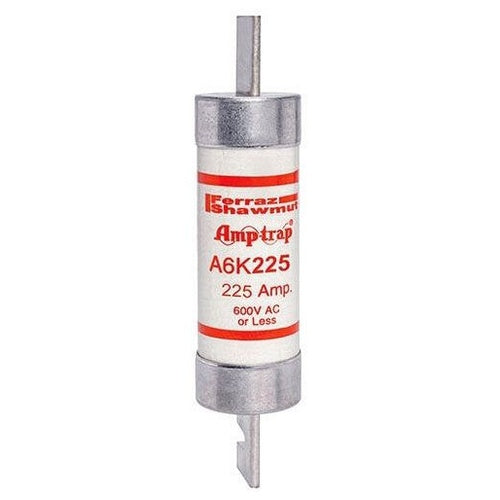

Mersen-Ferraz A6K225R 600V RK1 Fuse

Overview

Mersen-Ferraz A6K225R 600V RK1 Fuse

Product Specifications

• UPC: 78200191583
• Terminal Type: Blade
• Diameter: 2-9/16 Inch
• Length: 11-5/8 Inch
• Approval: UL 248/248-12, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Poly Tube (Body), Tin Plated Copper (Terminal); Application Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Non-Inductive Load and Lightning Circuit
• Catalog Number: A6K225R
• Brand Name: Amp-Trap[R]
• Model: A6K
• Type: Class RK1
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 225 Amp
• Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE A6K-R - CLASS RK1 - FAST-ACTING 600VAC 300VDC 225A BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Class RK1 Type; 11-5/8 Inch; UL 248/248-12, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 2-9/16 Inch Diameter; 200 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 225 Amp Current Rating; Blade Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Poly Tube (Body), Tin Plated Copper (Terminal); Application Loadcenter, Panelboard, Switchboard, Bus Duct, Feeder Circuit, Non-Inductive Load and Lightning Circuit; A6K Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001915834
• SKU Name: frz a6k225r
