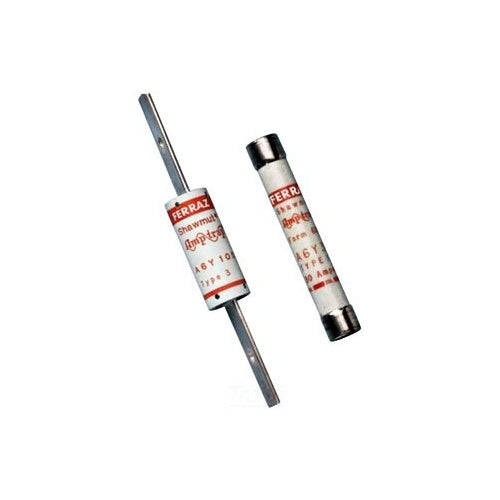

Mersen-Ferraz A6Y450-4 450A 500Vdc Special Fuse

Overview

Mersen-Ferraz A6Y450-4 450A 500Vdc Special Fuse

Product Specifications

• UPC: 78200190809
• Length: 13-3/8 INCH
• Approval: UL
• Catalog Number: A6Y450-4
• Brand Name: AMP-TRAP.
• Model: A6Y
• Type: TYPE 4
• Voltage Rating: 600 VAC/500 VDC
• Current Rating: 450 AMPERE
• Interrupting Rating: 200 KILOAMPERE (AC), 100 KILOAMPERE (DC)
• Diameter: 2-1/2 INCH
• Catalog Description: FUSE A6Y 600VAC 500VDC 450A TYPE 4 BLADE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: Type 4 Type; 13-3/8 Inch; UL Approval; 600 Vac/500 VDC Voltage Rating; 2-1/2 Inch Diameter; 200 Kiloampere (AC), 100 Kiloampere (DC) Interrupting Rating; 450 Ampere Current Rating; Amp-Trap. Brand; A6Y Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Form 600 Fuse
• Unspsc: 39121606
• UPC 12 Digit: 782001908096
• SKU Name: frz a6y4504
