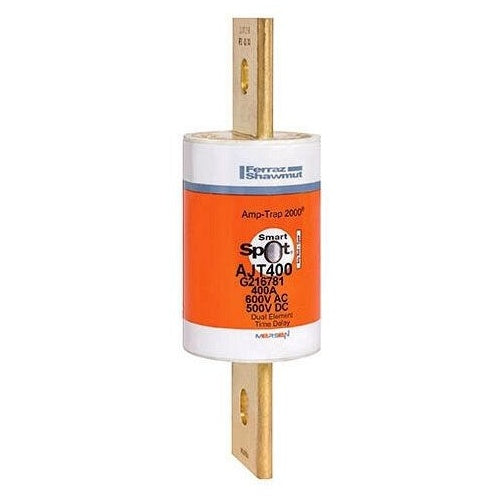

Mersen-Ferraz AJT400 600V Class J Time Delay Fuse

Overview

Mersen-Ferraz AJT400 600V Class J Time Delay Fuse

Product Specifications

• UPC: 78200196220
• Terminal Type: Blade
• Diameter: 2-1/8 Inch
• Length: 7-1/8 Inch
• Approval: UL 248/248-8, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip/Bolt; Material Fiberglass (Body), Brass (Terminal); Application Motor Circuit, Mains, Feeder, Branch Circuit, Lightning, Heating, General Load, Transformer, Control Panel, Circuit Breaker Back-Up, Bus Duct, Loadcenter; A
• Catalog Number: AJT400
• Brand Name: Amp-Trap 2000[R], SmartSpot[R]
• Model: AJT
• Type: Class J
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC, 500 Volt DC
• Current Rating: 400 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE AJT - CLASS J - TIME-DELAY 600VAC 500VDC 400A BLADE SMARTSPOT AMP-TRAP 2000
• Category: Current Limiting Fuses
• Full Technical Description: Class J Type; 7-1/8 Inch; UL 248/248-8, CSA C22.2 Approval; 600 Volt AC, 500 Volt DC Voltage Rating; 2-1/8 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 400 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; Amp-Trap 2000[R], SMARTSPOT[R] Brand; RoHS Compliant; Mounting Type Clip/Bolt; Material Fiberglass (Body), Brass (Terminal); Application Motor Circuit, Mains, Feeder, Branch Circuit, Lightning, Heating, General Load, Transformer, Control Panel, Circuit Breaker Back-Up, Bus Duct, Loadcenter; Applicable Standard IEC 269-2-1; AJT Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001962203
• SKU Name: frz ajt400
