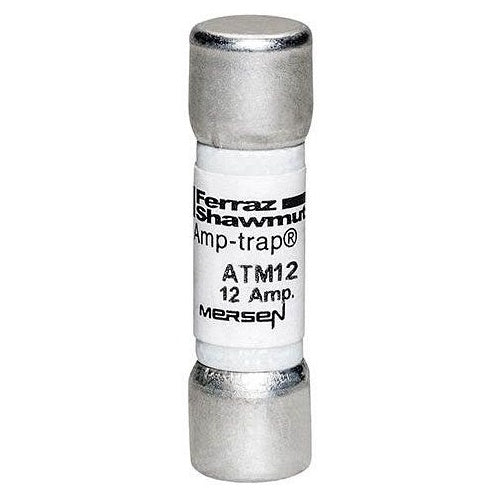

Mersen-Ferraz ATM12 600V Midget Fuse

Overview

Mersen-Ferraz ATM12 600V Midget Fuse

Product Specifications

• UPC: 78200190068
• Length: 38 Millimeter
• Approval: UL 248, CSA C22.2
• Additional Information: RoHS Compliant; Material GMG (Body), Tin Plated Copper (Contact); Mounting Type Clip
• Catalog Number: ATM12
• Model: ATM
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 12 Amp
• Interrupting Rating: 100 Kiloamp
• Terminal Type: Ferrule
• Diameter: 10 Millimeter
• Catalog Description: FUSE ATM - MIDGET - FAST-ACTING 600VAC 600VDC 12A FERRULE AMP-TRAP
• Category: Small Dimension Fuses
• Full Technical Description: 1.5 Inch; UL 248-14, CSA C22.2 Approval; 600 VAC/VDC Voltage Rating; 0.41 Inch Diameter; 100 Kiloampere (AC/DC) Interrupting Rating; 12 Ampere Current Rating; Ferrule Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; Body Material Glass-Melamine Laminate; Contact Material Tin Plated Copper; Mounting Type Clip; Application Supplemental Protection of A Wide Variety of Circuits Up to 600 VAC and 600 VDC With 100 kA; ATM Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Midget Fuse
• Unspsc: 39121609
• UPC 12 Digit: 782001900687
• SKU Name: frz atm12
