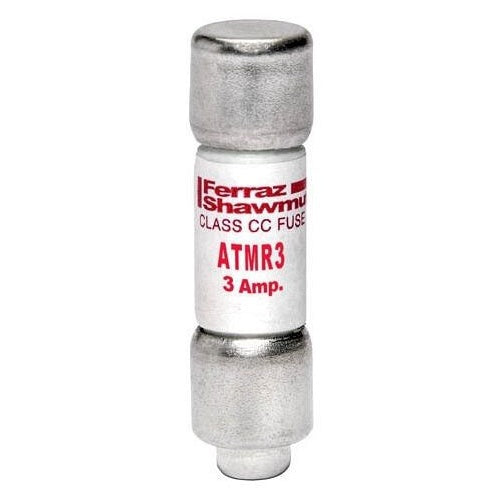

Mersen-Ferraz ATMR3 600V Special Purpose Fuse

Overview

Mersen-Ferraz ATMR3 600V Special Purpose Fuse

Product Specifications

• UPC: 78200190386
• Terminal Type: Ferrule
• Diameter: 0.41 Inch
• Length: 1.5 Inch
• Approval: UL 248/248-4, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Contactor Circuit, Lighting, General Load, Branch Circuit Protection
• Catalog Number: ATMR3
• Brand Name: Amp-Trap[R]
• Model: ATMR
• Type: Class CC Rejection
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 3 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE ATMR - CLASS CC - FAST-ACTING 600VAC 600VDC 3A FERRULE AMP-TRAP
• Category: Small Dimension Fuses
• Full Technical Description: Class CC Rejection Type; 1.5 Inch; UL 248/248-4, CSA C22.2 Approval; 600 Volt AC/DC Voltage Rating; 0.41 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 3 Amp Current Rating; Ferrule Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Contactor Circuit, Lighting, General Load, Branch Circuit Protection; ATMR Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Midget Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001903862
• SKU Name: frz atmr3
