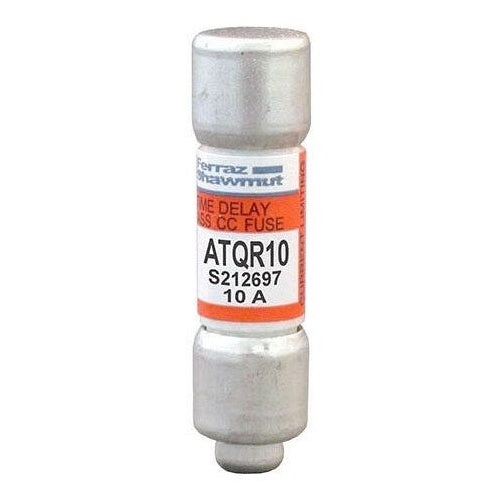

Mersen-Ferraz ATQR10 600V CC Time Delay Fuse

Overview

Mersen-Ferraz ATQR10 600V CC Time Delay Fuse

Product Specifications

• UPC: 78200190666
• Terminal Type: Ferrule
• Diameter: 0.41 Inch
• Length: 1.5 Inch
• Approval: UL 248/248-4, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Control Transformer, Solenoid, Inductive Load, Lighting, Heating, General Purpose Load
• Catalog Number: ATQR10
• Brand Name: Amp-Trap 2000[R]
• Model: ATQR
• Type: Class CC Rejection
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 10 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE ATQR - CLASS CC - TIME-DELAY 600VAC 300VDC 10A FERRULE AMP-TRAP 2000
• Category: Small Dimension Fuses
• Full Technical Description: Class CC Rejection Type; 1.5 Inch; UL 248/248-4, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 0.41 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 10 Amp Current Rating; Ferrule Terminal Type; Time Delay Characteristics; Amp-Trap 2000[R] Brand; RoHS Compliant; Mounting Type Clip; Material Glass Melamine Laminate (Body), Tin Plated Copper (Contact); Application Control Transformer, Solenoid, Inductive Load, Lighting, Heating, General Purpose Load; ATQR Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Midget Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001906665
• SKU Name: frz atqr10
