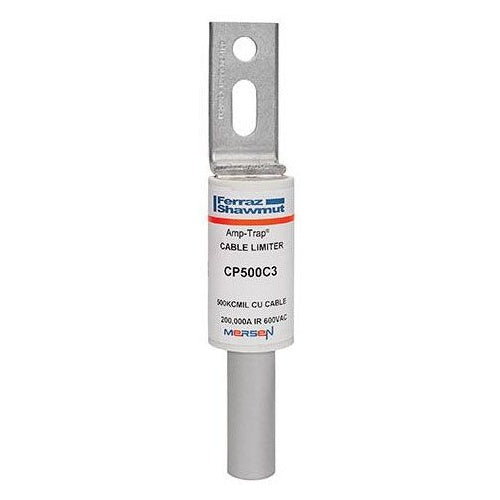

Mersen-Ferraz CP500C3 600V Cable Protector

Overview

Mersen-Ferraz CP500C3 600V Cable Protector

Product Specifications

• UPC: 78200193164
• Additional Information: Material Copper; Termination Type Cable to Offset Bus
• Catalog Number: CP500C3
• Model: CP
• Voltage Rating: 600 VAC
• Interrupting Rating: 200 Kiloampere
• Cable Size: 500 KCMIL
• Terminal Type: Crimp, Offset Blade
• Size: 1.88 Inch Dia x 10 Inch L
• Approval: UL
• Catalog Description: FUSE CP 600VAC 500 MCM BLADE TO CABLE AMP-TRAP
• Category: Current Limiting Fuses
• Full Technical Description: 1.88 Inch Dia X 10 Inch L Size; 500 kcmil Cable Size; UL Approval; 600 VAC Voltage Rating; 200 Kiloampere Interrupting Rating; Crimp, Offset Blade Terminal Type; Material Copper; Termination Type Cable to Offset Bus; CP Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Cable Protector
• Unspsc: 39121606
• UPC 12 Digit: 782001931643
• SKU Name: frz cp500c3
