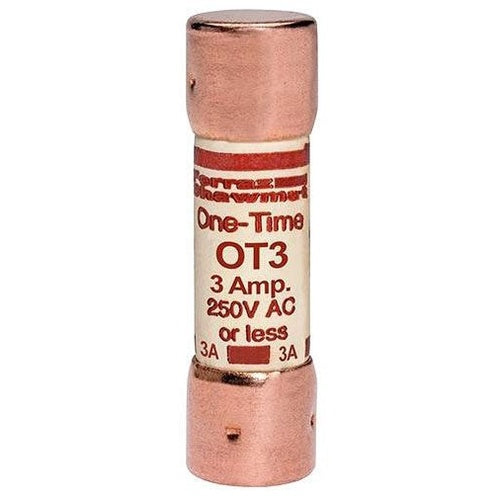

Mersen-Ferraz OT3 250V K5 Fuse

Overview

Mersen-Ferraz OT3 250V K5 Fuse

Product Specifications

• UPC: 78200170002
• Terminal Type: Ferrule
• Diameter: 9/16 Inch
• Length: 2 Inch
• Approval: UL 248/248-9, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Paper (Body), Copper (Terminal); Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation
• Catalog Number: OT3
• Brand Name: Amp-Trap[R]
• Model: OT
• Type: Class K5
• Characteristics: Fast Acting
• Voltage Rating: 250 Volt AC/DC
• Current Rating: 3 Amp
• Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE OT - CLASS K5 - FAST-ACTING 250VAC 250VDC 3A FERRULE AMP-TRAP
• Category: Renewable & Non-Renewable Fuses
• Full Technical Description: Class K5 Type; 2 Inch; UL 248/248-9, CSA C22.2 Approval; 250 Volt AC/DC Voltage Rating; 9/16 Inch Diameter; 50 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 3 Amp Current Rating; Ferrule Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Paper (Body), Copper (Terminal); Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation; OT Model
• Manufacturer: MERSEN (FORMERLY FERRAZ SHAWMUT INC)
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001700027
• SKU Name: frz ot3
