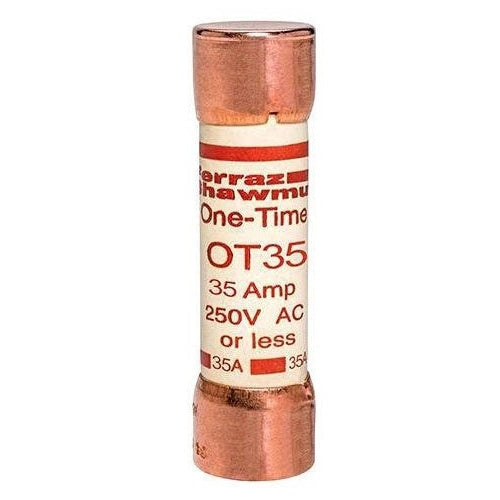

Mersen-Ferraz OT35 250V K5 Fuse

Overview

Mersen-Ferraz OT35 250V K5 Fuse

Product Specifications

• UPC: 78200170015
• Terminal Type: Ferrule
• Diameter: 0.81 Inch
• Length: 3 Inch
• Approval: UL 248/248-9, CSA C22.2
• Additional Information: RoHS Compliant; Body/Insulating Material Paper; Connection/Terminal Material Copper; Mounting Type Clip; Application Feeder, Branch Circuit, Resistive Heating, Residential and Small Commercial Installation
• Catalog Number: OT35
• Brand Name: Amp-Trap[R]
• Model: OT
• Type: Class K5
• Characteristics: Fast Acting, One Time
• Voltage Rating: 250 Volt AC/DC
• Current Rating: 35 Amp
• Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE OT - CLASS K5 - FAST-ACTING 250VAC 250VDC 35A FERRULE AMP-TRAP
• Category: Renewable & Non-Renewable Fuses
• Full Technical Description: Class K5 Type; 3 Inch; UL 248/248-9, CSA C22.2 Approval; 250 Volt AC/DC Voltage Rating; 0.81 Inch Diameter; 50 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 35 Amp Current Rating; Ferrule Terminal Type; Fast Acting, One Time Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Body/Insulating Material Paper; Connection/Terminal Material Copper; Mounting Type Clip; Application Feeder, Branch Circuit, Resistive Heating, Residential and Small Commercial Installation; OT Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001700157
• SKU Name: frz ot35
