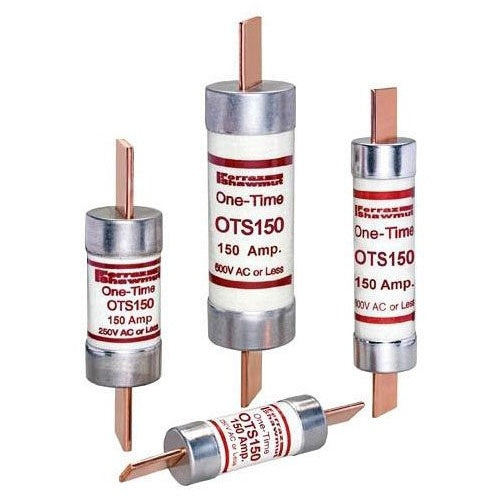

Mersen-Ferraz OTS150 600V K5 Fuse

Overview

Mersen-Ferraz OTS150 600V K5 Fuse

Product Specifications

• UPC: 78200170093
• Diameter: 1.83 Inch (without Pin), 1.968 Inch (with Pin)
• Length: 9-5/8 Inch
• Approval: UL 248-9, CSA C22.2
• Additional Information: Material Paper/Polyester (Body), Tin Plated Copper (Contact); Body Shape Cylindrical; Mounting Type Clip; Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation
• Catalog Number: OTS150
• Model: OTS
• Type: Class K5
• Characteristics: Fast Acting, One Time
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 150 Amp
• Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
• Terminal Type: Blade
• Catalog Description: FUSE OTS - CLASS K5 - FAST-ACTING 600VAC 300VDC 150A BLADE AMP-TRAP
• Category: Renewable & Non-Renewable Fuses
• Full Technical Description: Class K5 Type; 9-5/8 Inch; UL 248-9, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 1.83 Inch (Without Pin), 1.968 Inch (With Pin) Diameter; 50 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 150 Amp Current Rating; Blade Terminal Type; Fast Acting, One Time Characteristics; AMP-TRAP[R] Brand; Material Paper/Polyester (Body), Tin Plated Copper (Contact); Body Shape Cylindrical; Mounting Type Clip; Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation; OTS Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001700935
• SKU Name: frz ots150
