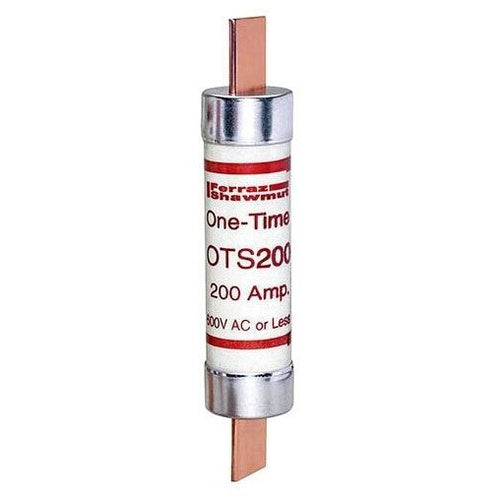

Mersen-Ferraz OTS200 600V K5 Fuse

Overview

Mersen-Ferraz OTS200 600V K5 Fuse

Product Specifications

• UPC: 78200170096
• Terminal Type: Blade
• Diameter: 1-13/16 Inch
• Length: 9-5/8 Inch
• Approval: UL 248/248-9, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Paper (Body), Copper (Terminal); Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation
• Catalog Number: OTS200
• Brand Name: Amp-Trap[R]
• Model: OTS
• Type: Class K5
• Characteristics: Fast Acting
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 200 Amp
• Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE OTS - CLASS K5 - FAST-ACTING 600VAC 300VDC 200A BLADE AMP-TRAP
• Category: Renewable & Non-Renewable Fuses
• Full Technical Description: Class K5 Type; 9-5/8 Inch; UL 248/248-9, CSA C22.2 Approval; 600 Volt AC, 300 Volt DC Voltage Rating; 1-13/16 Inch Diameter; 50 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 200 Amp Current Rating; Blade Terminal Type; Fast Acting Characteristics; AMP-TRAP[R] Brand; RoHS Compliant; Mounting Type Clip; Material Paper (Body), Copper (Terminal); Application Feeder, Branch Circuit, Resistive Heating, Residential, Small Commercial Installation; OTS Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121627
• UPC 12 Digit: 782001700966
• SKU Name: frz ots200
