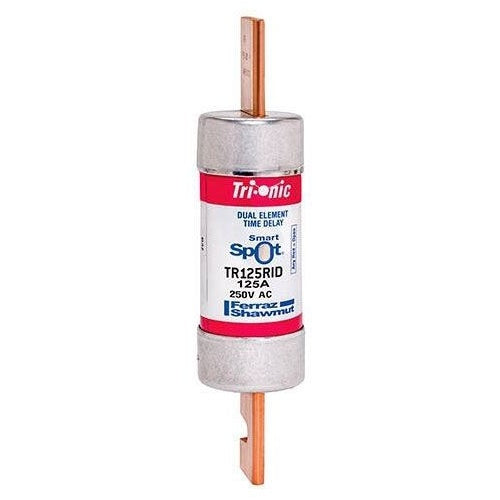

Mersen-Ferraz TR125RID 125A 250V Time Delay Fuse

Overview

Mersen-Ferraz TR125RID 125A 250V Time Delay Fuse

Product Specifications

• UPC: 78200141536
• Terminal Type: Blade
• Diameter: 1-9/16 Inch
• Length: 7-1/8 Inch
• Approval: UL 248-12, CSA C22.2
• Additional Information: Body Material Polyester; Contact Material Copper/Tin-plated Copper; Mounting Type Clip; Includes Blow Fuse Indicator; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General-Purpose Equipment
• Catalog Number: TR125RID
• Brand Name: Tri-Onic[R]
• Model: TR-R
• Type: Class RK5
• Characteristics: Time Delay
• Voltage Rating: 250 VAC/VDC
• Current Rating: 125 Ampere
• Interrupting Rating: 200 Kiloampere (AC), 20 Kiloampere (DC)
• Catalog Description: FUSE TR-R - CLASS RK5 - TIME-DELAY 250VAC 250VDC 125A BLADE SMARTSPOT TRI-ONIC
• Category: Dual Element Fuses
• Full Technical Description: Class RK5 Type; 7-1/8 Inch; UL 248-12, CSA C22.2 Approval; 250 VAC/VDC Voltage Rating; 1-9/16 Inch Diameter; 200 Kiloampere (AC), 20 Kiloampere (DC) Interrupting Rating; 125 Ampere Current Rating; Blade Terminal Type; Time Delay Characteristics; TRI-ONIC[R], SMARTSPOT[R] Brand; Body Material Polyester; Contact Material Copper/Tin-Plated Copper; Mounting Type Clip; Includes Blow Fuse Indicator; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General-Purpose Equipment; TR-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001415365
• SKU Name: frz tr125rid
