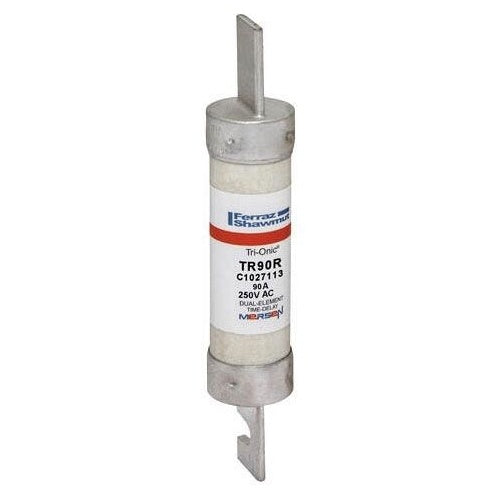

Mersen-Ferraz TR90R 90A 250V Rk5 Time Delay Fuse

Overview

Mersen-Ferraz TR90R 90A 250V Rk5 Time Delay Fuse

Product Specifications

• UPC: 78200174800
• Terminal Type: Blade
• Diameter: 1-1/16 Inch
• Length: 5-7/8 Inch
• Approval: UL 248-12, CSA C22.2, CE
• Additional Information: Lead-Free; RoHS Compliant; Body Style Cylindrical, Rejection; Body Material Polyester; Contact Material Copper, Tin Plated Copper; Mounting Type Clip; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, Genera
• Catalog Number: TR90R
• Brand Name: Ferraz
• Model: TR-R
• Type: Class RK5
• Characteristics: Time Delay
• Voltage Rating: 250 Volt AC/DC
• Current Rating: 90 Amp
• Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
• Catalog Description: FUSE TR-R - CLASS RK5 - TIME-DELAY 250VAC 250VDC 90A BLADE TRI-ONIC
• Category: Current Limiting Fuses
• Full Technical Description: Class RK5 Type; 5-7/8 Inch; UL 248-12, CSA C22.2, CE Approval; 250 Volt AC/DC Voltage Rating; 1-1/16 Inch Diameter; 200 Kiloamp (AC), 20 Kiloamp (DC) Interrupting Rating; 90 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; TRI-ONIC[R] Brand; Lead-Free; RoHS Compliant; Body Style Cylindrical, Rejection; Body Material Polyester; Contact Material Copper, Tin Plated Copper; Mounting Type Clip; Application Motor Circuit, Main, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment; TR-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001748005
• SKU Name: frz tr90r
