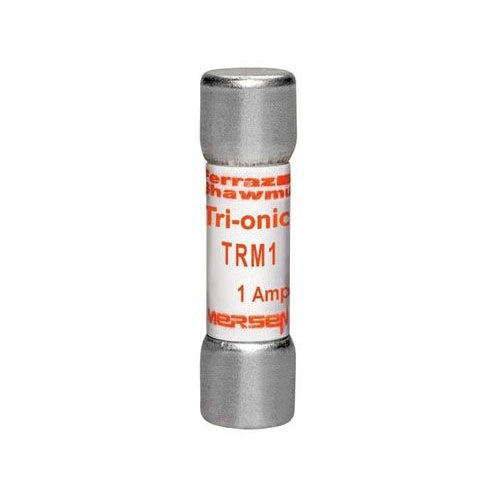

Mersen-Ferraz TRM1 250V Midget Time Delay Fuse

Overview

Mersen-Ferraz TRM1 250V Midget Time Delay Fuse

Product Specifications

• UPC: 78200174317
• Diameter: 0.41 Inch
• Length: 1.5 Inch
• Approval: UL 248-14, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Glass-Melamine Laminate (Body), Tin Plated Copper (Terminal); Application Small Motor, Small Transformer, Lighting Circuit, Control Circuit
• Catalog Number: TRM1
• Brand Name: Tri-Onic[R]
• Model: TRM
• Characteristics: 12 Second Time Delay (at 200 Percent Rated Load)
• Voltage Rating: 250 Volt AC
• Current Rating: 1 Amp
• Interrupting Rating: 10 Kiloamp
• Terminal Type: Ferrule
• Catalog Description: FUSE TRM - MIDGET - TIME-DELAY 250VAC 1A FERRULE TRI-ONIC
• Category: Small Dimension Fuses
• Full Technical Description: 1.5 Inch; UL 248-14, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 0.41 Inch Diameter; 10 Kiloamp Interrupting Rating; 1 Amp Current Rating; Ferrule Terminal Type; 12 Second Time Delay (at 200 Percent Rated Load) Characteristics; TRI-ONIC[R] Brand; RoHS Compliant; Mounting Type Clip; Material Glass-Melamine Laminate (Body), Tin Plated Copper (Terminal); Application Small Motor, Small Transformer, Lighting Circuit, Control Circuit; TRM Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: Midget Fuse
• Unspsc: 39121609
• UPC 12 Digit: 782001743178
• SKU Name: frz trm1
