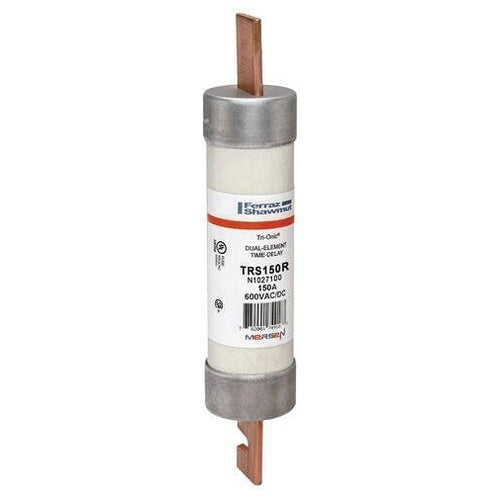

Mersen-Ferraz TRS150R 150A 600V Rk5 Time Delay Fuse

Overview

Mersen-Ferraz TRS150R 150A 600V Rk5 Time Delay Fuse

Product Specifications

• UPC: 78200174916
• Terminal Type: Blade
• Diameter: 1-13/16 Inch
• Length: 9-5/8 Inch
• Approval: UL 248-12, CSA C22.2
• Additional Information: RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal), High Grade Silica (Filler); Body Style Rejection; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purp
• Catalog Number: TRS150R
• Brand Name: Tri-Onic[R]
• Model: TRS-R
• Type: Class RK5
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 150 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE TRS-R - CLASS RK5 - TIME-DELAY 600VAC 600VDC 150A BLADE TRI-ONIC
• Category: Current Limiting Fuses
• Full Technical Description: Class RK5 Type; 9-5/8 Inch; UL 248-12, CSA C22.2 Approval; 600 Volt AC/DC Voltage Rating; 1-13/16 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 150 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; TRI-ONIC[R] Brand; RoHS Compliant; Mounting Type Clip; Material Fiberglass (Body), Tin Plated Copper (Terminal), High Grade Silica (Filler); Body Style Rejection; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment; TRS-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001749163
• SKU Name: frz trs150r
