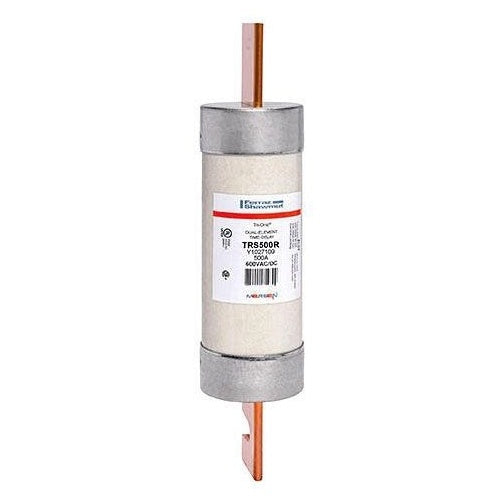

Mersen-Ferraz TRS500R 500A 600V Rk5 Time Delay Fuse

Overview

Mersen-Ferraz TRS500R 500A 600V Rk5 Time Delay Fuse

Product Specifications

• UPC: 78200174929
• Terminal Type: Blade
• Diameter: 3-1/8 Inch
• Length: 13-3/8 Inch
• Approval: UL 248-12, CSA C22.2
• Additional Information: Body Style Cylindrical, Rejection; Body Material Polyester; Contact Material Copper, Tin Plated Copper; Mounting Type Clip; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment
• Catalog Number: TRS500R
• Brand Name: Ferraz
• Model: TRS-R
• Type: Class RK5
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 500 Amp
• Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
• Catalog Description: FUSE TRS-R - CLASS RK5 - TIME-DELAY 600VAC 600VDC 500A BLADE TRI-ONIC
• Category: Current Limiting Fuses
• Full Technical Description: Class RK5 Type; 13-3/8 Inch; UL 248-12, CSA C22.2 Approval; 600 Volt AC/DC Voltage Rating; 3-1/8 Inch Diameter; 200 Kiloamp (AC), 100 Kiloamp (DC) Interrupting Rating; 500 Amp Current Rating; Blade Terminal Type; Time Delay Characteristics; TRI-ONIC[R] Brand; Body Style Cylindrical, Rejection; Body Material Polyester; Contact Material Copper, Tin Plated Copper; Mounting Type Clip; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment; TRS-R Model
• Manufacturer: Mersen - Ferraz Shawmut
• Manufacturer Brand: Mersen - Ferraz Shawmut, Inc.
• Sub Category: UL Power Fuse
• Unspsc: 39121604
• UPC 12 Digit: 782001749293
• SKU Name: frz trs500r
