GE thn3361ss

Overview

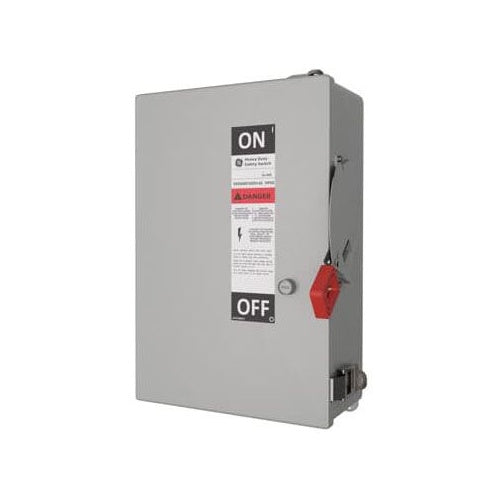

Spec-Setter® THN3361SS Heavy Duty Non-Fused Safety Switch, 600 V AC, 30 A, 30 hp, 3 Poles

Product Specifications

• Catalog Number: THN3361SS
• UPC / GTIN: 783164089356
• Manufacturer Brand: GE
• UNSPSC: 39122205
• Features: Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance; Coin-proof, defeatable dual interlocks meet all safety inspection requirements; Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy; 3-point mounting pattern speeds installation and simplifies ganging in close quarters; Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts; Plated blades provide visible confirmation of contact position; Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life; Spring reinforced fuse clips assure reliable contact for cool operation; Suitable for class H, K, J or R fuses
• Actuator Type: Handle
• Amperage Rating: 30 A
• Country of Origin: United Kingdom
• Dimensions: 10.1 in W x 9.4 in D x 11.3 in H
• Enclosure Type: NEMA 4/4X
• Finish: Hot Dipped Galvanized/Powder Coated
• Frequency Rating: 50/60 Hz
• Horsepower: 30 hp
• Insulation Type: Class H/J/K/R
• Material: 304 Stainless Steel
• Mounting Type: 3-Point/Self-Leveling
• Number of Poles: 3
• Number of Wires: 3
• Phase: 3 | 3 ph
• Short Circuit Current Rating: 200 kA
• Temperature Rating: 60 to 75 deg C
• Terminal Type: Line/Load Lug
• Type: Heavy Duty Non-Fused
• Voltage Rating: 600 V AC | 600 VAC
