Blackburn GG12H 1/2 Grounding Rod ClAMP

Overview

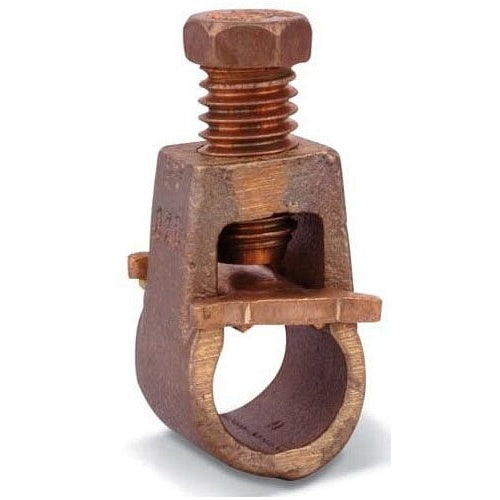

Blackburn GG12H 1/2 Grounding Rod Clamp

Product Specifications

• UPC: 78378680061
• Additional Information: Type Heavy-Duty; Thread Size 7/16-14 TPI UNC-2A
• Catalog Number: GG12H
• Model: GG
• Conductor Size: 8 AWG Solid to 2 AWG Stranded
• Rod Size: 1/2 Inch
• Size: 15/16 Inch L x 27/32 Inch W x 1-13/16 Inch H
• Installation: (1) Hex Head Bolt
• Material: High-Strength Cast Copper Alloy
• Approval: CSA
• Catalog Description: HEAVY DUTY GROUND ROD CLAMP, COPPER ALLOY CASTING, HEX HEAD SCREW, NOMINAL ROD DIAMETER 1/2 (12.7MM), WIRE RANGE 8 SOL - 2 STR (8.3-33.6MM2)
• Category: Ground Rods & Grounding Systems
• Full Technical Description: High-Strength Cast Copper Alloy Material; 15/16 Inch L X 27/32 Inch W X 1-13/16 Inch H Size; (1) Hex Head Bolt Installation; CSA Approval; 8 AWG Solid to 2 AWG Stranded Conductor Size; 1/2 Inch Rod Size; EZGROUND[TM] Brand; Type Heavy-Duty; Thread Size 7/16-14 TPI Unc-2A; GG Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786800612
• SKU Name: gg12h blackburn
