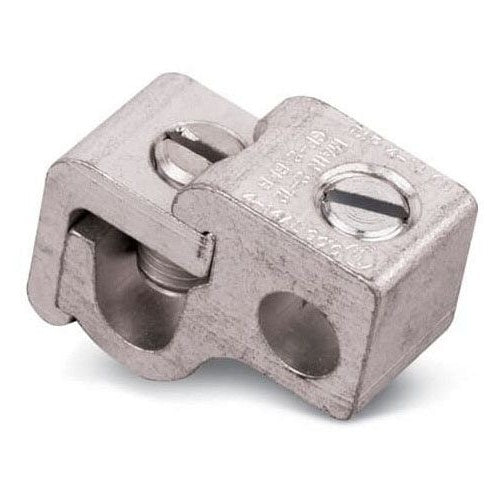

Blackburn GP-0WC Parallel Tap w/Ins Cover

Overview

Blackburn GP-0WC Parallel Tap w/Ins Cover

Product Specifications

• UPC: 78378633081
• Material: Aluminum
• Additional Information: Overall Dimension 1-3/4 Inch L x 3/4 Inch W x 1 Inch H; Includes Insulating Cover
• Catalog Number: GP-0WC
• Model: GP
• Installation: Parallel Tap, Two Socket Head Screw
• Conductor Material: Tin Plated Copper/Aluminum
• Minimum Run Conductor Size: 2 AWG (Copper/Aluminum)
• Maximum Run Conductor Size: 1/0 AWG (Copper/Aluminum)
• Minimum Tap Conductor Size: 14 AWG (Copper/Aluminum)
• Maximum Tap Conductor Size: 1/0 AWG (Copper/Aluminum)
• Catalog Description: TYPE GP-ALUMINUM PARALLEL TAP CONNECTORS WITH INSULATING COVER FOR CONDUCTOR RANGE MAIN 1/0-2, TAP 1/0-14
• Category: Splicing & Terminating Kits
• Full Technical Description: Aluminum Material; 2 AWG (Copper/Aluminum) min. Run Conductor Size; 1/0 AWG (Copper/Aluminum) Max. Run Conductor Size; 14 AWG (Copper/Aluminum) min. Tap Conductor Size; 1/0 AWG (Copper/Aluminum) Max. Tap Conductor Size; Parallel Tap, Two Socket Head Screw Installation; Tin Plated Copper/Aluminum Conductor Material; Overall Dimension 1-3/4 Inch L X 3/4 Inch W X 1 Inch H; Includes Insulating Cover; GP Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121428
• UPC 12 Digit: 783786330812
• SKU Name: gp0wc blackburn

Resources

• Manufacturer Spec Sheet
