ILSCO GPL-33 Bronze ClAMP Connector

Overview

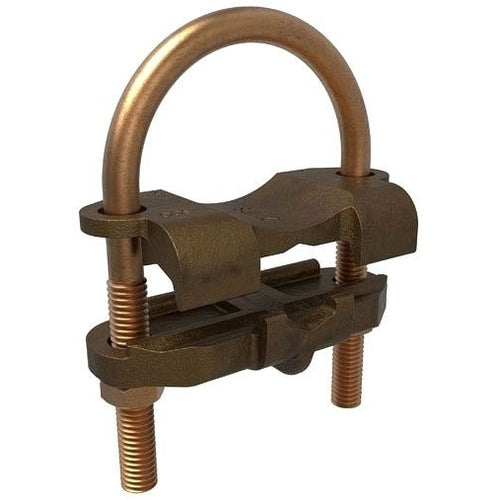

Ilsco GPL-33 Bronze Clamp Connector

Product Specifications

• UPC: 78366926260
• Approval: UL E158587/467, CSA
• Used On: Pipe, Rod, Rebar, Fence Post, Direct Burial
• Additional Information: RoHS Compliant; Tube Outer Diameter 2 to 2.375 Inch
• Catalog Number: GPL-33
• Model: GPL
• Conductor Size: 4 AWG Solid to 2/0 AWG Stranded
• Ips Size: 2 Inch
• Rod Size: 2 to 2-3/8 Inch
• Size: 3.625 Inch Length x 1.563 Inch Width x 4.665 Inch Height
• Installation: U-Bolt to Pipe
• Material: Bronze and Copper Alloy (Body), Silicon Bronze (Hardware)
• Catalog Description: PERMAGROUND COPPER U-BOLT GROUND CLAMP, CONDUCTOR RANGE 2/0-4 SOL, PIPE SIZE 2IN, GROUND ROD SIZES 2 TO 2-3/8IN, UL, CSA
• Category: Grounding & Bonding Equipment
• Full Technical Description: Bronze and Copper Alloy (Body), Silicon Bronze (Hardware) Material; 3.625 Inch Length X 1.563 Inch Width X 4.665 Inch Height Size; Pipe, Rod, Rebar, Fence Post, Direct Burial Used on; U-Bolt to Pipe Installation; UL E158587/467, CSA Approval; 4 AWG Solid to 2/0 AWG Stranded Conductor Size; 2 to 2-3/8 Inch Rod Size; 2 Inch IPS Size; RoHS Compliant; Tube Outer Diameter 2 to 2.375 Inch; GPL Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 783669262605
• SKU Name: gpl33 ilsco
