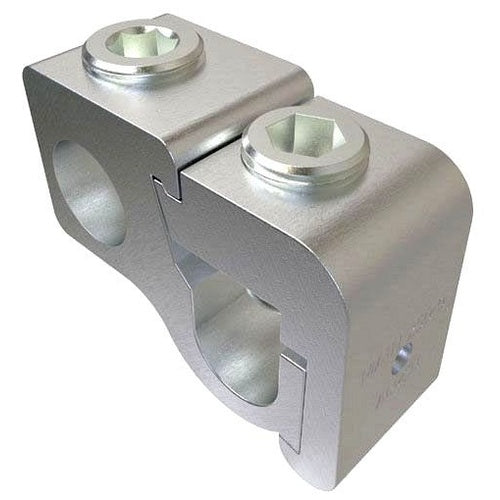

ILSCO GTA-250-250 Parallel Tap Connector

Overview

Ilsco GTA-250-250 Parallel Tap Connector

Product Specifications

• UPC: 78366934225
• Maximum Tap Conductor Size: 250 KCMIL
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 453G, CSA
• Additional Information: Size 2-1/8 Inch L x 15/16 Inch W x 1-7/16 Inch H; Screw Size 5/16 Inch Hex (Main/Tap); Temperature Rating 90 Deg C
• Catalog Number: GTA-250-250
• Model: GTA
• Voltage Rating: 600 V
• Installation: Parallel Tap
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 1/0 AWG
• Maximum Run Conductor Size: 250 KCMIL
• Minimum Tap Conductor Size: 6 AWG
• Catalog Description: ALUMINUM PARALLEL TAP CONNECTOR, DUAL RATED, MAIN CONDUCTOR RANGE 250-1/0, TAP RANGE 250-6, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 1/0 AWG min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 6 AWG min. Tap Conductor Size; 250 kcmil Max. Tap Conductor Size; Parallel Tap Installation; Aluminum/Copper Conductor Material; UL 453G, CSA Approval; 600 V Voltage Rating; Size 2-1/8 Inch L X 15/16 Inch W X 1-7/16 Inch H; Screw Size 5/16 Inch Hex (Main/Tap); Temperature Rating 90 Deg C; GTA Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669342253
• SKU Name: gta250250 ilsco
