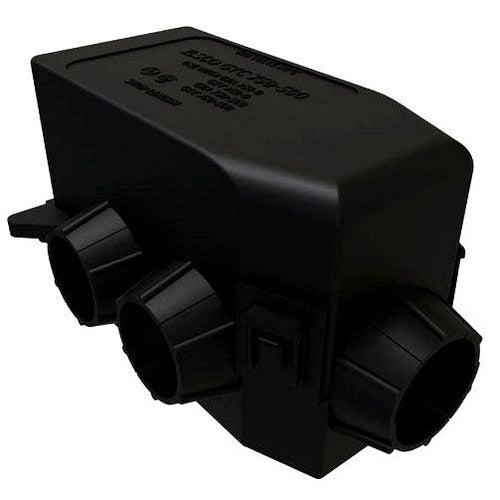

ILSCO GTA-750-500-W/C Parallel Tap Connector

Overview

Ilsco GTA-750-500-W/C Parallel Tap Connector

Product Specifications

• UPC: 78366935533
• Maximum Tap Conductor Size: 500 KCMIL
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 453G, CSA
• Additional Information: Size 3-3/8 Inch L x 1-5/16 Inch W x 2-7/16 Inch H; Screw Size 3/8 Inch Hex (Main/Tap); Temperature Rating 90 Deg C; Includes Cover
• Catalog Number: GTA-750-500-W/C
• Model: GTA
• Voltage Rating: 600 V
• Installation: Parallel Tap
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 500 KCMIL
• Maximum Run Conductor Size: 750 KCMIL
• Minimum Tap Conductor Size: 2 AWG
• Catalog Description: ALUMINUM PARALLEL TAP CONNECTOR, DUAL RATED, MAIN CONDUCTOR RANGE 750-500, TAP RANGE 500-2, TIN PLATED, UL, CSA, INCLUDES COVER
• Category: Splicing & Terminating Kits
• Full Technical Description: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 500 kcmil min. Run Conductor Size; 750 kcmil Max. Run Conductor Size; 2 AWG min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; Parallel Tap Installation; Aluminum/Copper Conductor Material; UL 453G, CSA Approval; 600 V Voltage Rating; Size 3-3/8 Inch L X 1-5/16 Inch W X 2-7/16 Inch H; Screw Size 3/8 Inch Hex (Main/Tap); Temperature Rating 90 Deg C; Includes Cover; GTA Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669355338
• SKU Name: gta750500w/c ilsco
