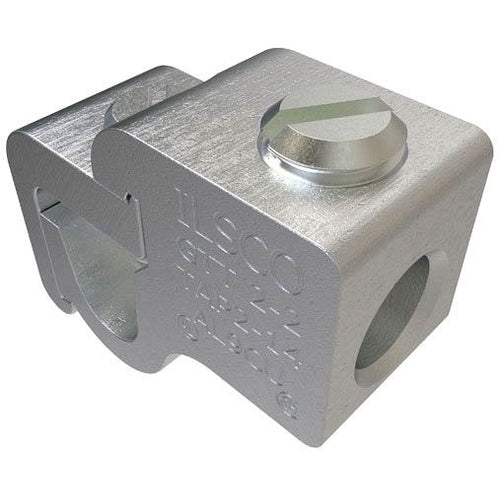

ILSCO GTT-2-2 2Awg Aluminum/Copper T-Tap Connector

Overview

Ilsco GTT-2-2 2Awg Aluminum/Copper T-Tap Connector

Product Specifications

• UPC: 78366937895
• Maximum Tap Conductor Size: 2 AWG (Aluminum/Copper)
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Size 1-1/4 Inch L x 9/16 Inch W x 1 Inch H; Screw Type Slotted (Main/Tap); Temperature Rating 90 Deg C
• Catalog Number: GTT-2-2
• Model: GTT
• Voltage Rating: 600 V
• Installation: T-Tap
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 12 AWG Stranded
• Maximum Run Conductor Size: 2 AWG
• Minimum Tap Conductor Size: 14 AWG (Copper), 12 AWG (Aluminum)
• Catalog Description: ALUMINUM T TAP CONNECTOR, DUAL RATED, MAIN CONDUCTOR RANGE 2-12, TAP RANGE 2-12 AL, 2-14 CU, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy Material; 12 AWG Stranded min. Run Conductor Size; 2 AWG Max. Run Conductor Size; 14 AWG (Copper), 12 AWG (Aluminum) min. Tap Conductor Size; 2 AWG (Aluminum/Copper) Max. Tap Conductor Size; T-Tap Installation; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 600 V Voltage Rating; Size 1-1/4 Inch L X 9/16 Inch W X 1 Inch H; Screw Type Slotted (Main/Tap); Temperature Rating 90 Deg C; GTT Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669378955
• SKU Name: gtt22 ilsco
