Blackburn GUV3025 3-3-1/2 Ground ClAMP

Overview

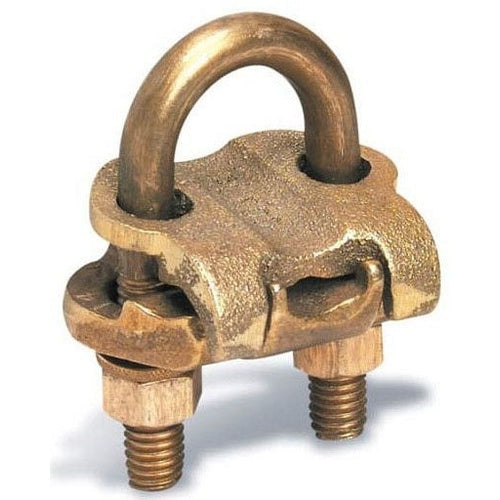

Blackburn GUV3025 3-3-1/2 Ground Clamp

Product Specifications

• UPC: 78378680370
• Approval: UL
• Used On: Direct Burial
• Additional Information: Style U Bolt
• Catalog Number: GUV3025
• Model: GUV
• Conductor Size: 2/0 AWG to 250 MCM
• Ips Size: 3 Inch
• Rod Size: 3 to 3-1/2 Inch
• Size: 1-9/16 Inch L x 4-13/16 Inch W x 5-9/16 Inch H
• Installation: U Bolt to Pipe, Rod
• Material: Cast/Forged Copper Alloy
• Catalog Description: U-BOLT COPPER GROUND CLAMP, STAINLESS STEEL U-BOLT, WIRE RANGE 2/0 - 250, ROD SIZE 3 TO 3-1/2 INCHES, IPS PIPE SIZE MAX 3 INCHES, LENGTH 5-9/16 INCHES, WIDTH 4-13/16 INCHES, DEPTH 1-9/16 INCHES
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Cast/Forged Copper Alloy Material; 1-9/16 Inch L X 4-13/16 Inch W X 5-9/16 Inch H Size; Direct Burial Used on; U Bolt to Pipe, Rod Installation; UL Approval; 2/0 AWG to 250 MCM Conductor Size; 3 to 3-1/2 Inch Rod Size; 3 Inch IPS Size; EZGROUND[TM] Brand; Style U Bolt; GUV Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786803705
• SKU Name: guv3025 blackburn
