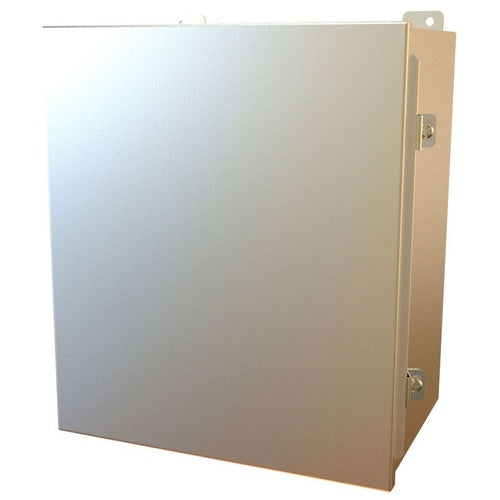

Hammond Mfg 1414N4PHSSM8 N4X J Box, Hinge Cover w/Panel 14x12x8 304 Stainless Steel

Overview

Hammond Mfg 1414N4PHSSM8 N4X J Box, Hinge Cover w/Panel 14x12x8 304 Stainless Steel

Product Specifications

• Brand Name: Hammond Mfg.
• Sub Brand: 1414 N4 PH SS Series
• Type: N4X J Box, Hinge Cover w/panel
• Color: Unpainted
• Cubic Capacity: 1344 Cubic in
• Material: Stainless Steel
• Mounting: Wall
• Nema Rating: 3R, 13, 4X
• Size: 14.00 in x 12.00 in x 8.00 in
• Special Features: Formed from 14 gauge 304 or 316 stainless steel. Smooth, continuously welded seams. Welded brackets provide for enclosure mounting. Continuous stainless steel hinged cover is secured with stainless steel clamps and screws. Seamless poured-in place gasket. All models include a removable 14 gauge inner panel. Tapped studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
• Standard: CSA, UL, CE
• Catalog Description: N4X J BOX, HINGE COVER W/PANEL - 14 X 12 X 8 - 304 SS
• Full Technical Description: Single Door Type; 304 Stainless Steel Material; Smooth Brushed Finish; Natural Color; 12 Inch; 14 Inch; 8 Inch; UL, CSA, CE Approval; Bracket Mounting; NEMA 3R/4/4X/12/13, IP66 Enclosure; Continuous Hinged, Clamp, Screw, Gasketed Cover Type; 14 Gauge Material Specification; RoHS Compliant; Includes Inner Panel, Tapped Stud, Bonding Stud, Grounding Stud; Application Instrument Enclosure, Electric, Hydraulic/Pneumatic Control Housing, Electrical Junction Box/Terminal Wiring Enclosure; Applicable Standard IEC 60529, JIC EGP-1; 1414-N4-PH-SS Model
• Manufacturer: Hammond Mfg. Co., Inc.
• Manufacturer Brand: Electrical Enclosure Group
• Sub Category: Multipurpose Wall Mount Enclosure
• Unspsc: 39121324
• UPC 12 Digit: 623980355405
• SKU Name: hammond 1414n4phssm8
