Hubbell 074011036 Straight Male Deluxe Cord Grip, 1.9-2.0", 3" W/Mesh

Overview

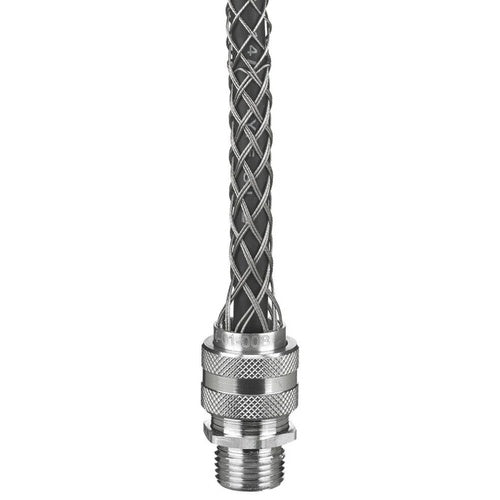

Hubbell 074011036 Straight Male Deluxe Cord Grip, 1.9-2.0", 3" W/Mesh

Product Specifications

• UPC: 78358532290
• Approval: UL, CSA
• Additional Information: Connector Size 3.85 Inch Dia x 4 Inch L; Temperature Rating -30 to 225 Deg F
• Catalog Number: 074011036
• Connector Type: Straight Male
• Connector Material: Aluminum
• Mesh Type: Double Weave
• Mesh Material: Stainless Steel
• Thread Size: 3 Inch NPT
• Cord Size: 1.937 to 2.062 Inch
• Application: Hazardous Location
• Catalog Description: KELLEMS WIRE MANAGEMENT, DELUXE CORD GRIPS, STRAIGHT MALE, 1.937-2.062", 3" WITH MESH
• Category: Cable & Cord Grips
• Full Technical Description: UL, CSA Approval; Hazardous Location Application; Straight Male Connector Type; 3 Inch NPT Thread Size; 1.937 to 2.062 Inch Cord Size; Stainless Steel Mesh Material; Double Weave Mesh Type; Aluminum Connector Material; Connector Size 3.85 Inch Dia X 4 Inch L; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector with Grip
• Unspsc: 39121431
• UPC 12 Digit: 783585322902
• SKU Name: hubw 074011036
