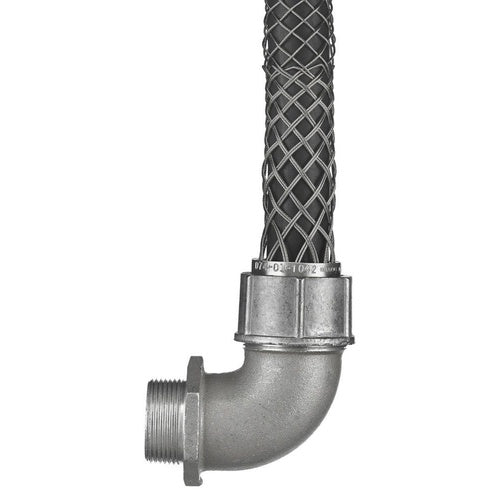

Hubbell 07401108 90D Male Deluxe Cord Grip, 1.0-1.1", 1.25" W/Mesh

Overview

Hubbell 07401108 90D Male Deluxe Cord Grip, 1.0-1.1", 1.25" W/Mesh

Product Specifications

• UPC: 78358516733
• Approval: UL, CSA
• Additional Information: Connector Size 3.18 Inch Dia x 4.3 Inch L; Temperature Rating -30 to 225 Deg F
• Catalog Number: 07401108
• Connector Type: 90 Deg Male
• Connector Material: Aluminum
• Mesh Type: Double Weave
• Mesh Material: Stainless Steel
• Thread Size: 1-1/4 Inch NPT
• Cord Size: 1 to 1.125 Inch
• Application: Hazardous Location
• Catalog Description: KELLEMS WIRE MANAGEMENT, DELUXE CORD GRIPS, 90 DEGREE MALE, 1.000-1.125", 1.25" WITH MESH
• Category: Cable & Cord Grips
• Full Technical Description: UL, CSA Approval; Hazardous Location Application; 90 Deg Male Connector Type; 1-1/4 Inch NPT Thread Size; 1 to 1.125 Inch Cord Size; Stainless Steel Mesh Material; Double Weave Mesh Type; Aluminum Connector Material; Connector Size 3.18 Inch Dia X 4.3 Inch L; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector with Grip
• Unspsc: 39121431
• UPC 12 Digit: 783585167336
• SKU Name: hubw 07401108
