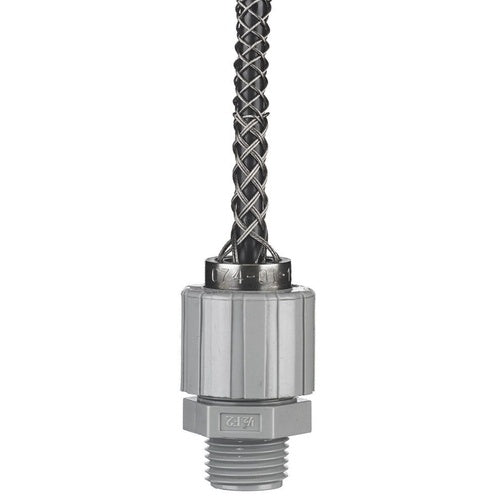

Hubbell 074011343 Straight Non-Metallic Deluxe Cord Grip, .87-1.0", 1" W/Mesh

Overview

Hubbell 074011343 Straight Non-Metallic Deluxe Cord Grip, .87-1.0", 1" W/Mesh

Product Specifications

• UPC: 78358533114
• Application: Wiring Enclosure, Pendant Station, Hand Tool, Construction, Processing and Material Handling Equipment, Pump, Motor and Machine Tool, Hazardous/Wet Location
• Approval: UL, CSA
• Additional Information: Form Size F4; Connector Size 1.88 Inch Diameter x 2.45 Inch Length; Throat Size 1.01 Inch Diameter; Material Stainless (Grip), Stainless Steel (Strand), Neoprene (Bushing), Aluminum (Collar), Nylon (Nut); Temperature Rating -30 to 225 Deg F
• Catalog Number: 074011343
• Brand Name: Wiring Device-Kellems
• Connector Type: Straight Male
• Connector Material: Nylon
• Mesh Type: Multi-Weave
• Mesh Material: Stainless Steel
• Thread Size: 1 Inch Threaded
• Cord Size: 0.875 to 1 Inch
• Catalog Description: KELLEMS WIRE MANAGEMENT, DELUXE CORD GRIPS, STRAIGHT MALE, NON-METALLIC, .875-1.000", 1" WITH MESH
• Category: Cable & Cord Grips
• Full Technical Description: UL, CSA Approval; Wiring Enclosure, Pendant Station, Hand Tool, Construction, Processing and Material Handling Equipment, Pump, Motor and Machine Tool, Hazardous/Wet Location Application; Straight Male Connector Type; 1 Inch Threaded Thread Size; 0.875 to 1 Inch Cord Size; Stainless Steel Mesh Material; Multi-Weave Mesh Type; Nylon Connector Material; Form Size F4; Connector Size 1.88 Inch Diameter X 2.45 Inch Length; Throat Size 1.01 Inch Diameter; Material Stainless (Grip), Stainless Steel (Strand), Neoprene (Bushing), Aluminum (Collar), Nylon (Nut); Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector with Grip
• Unspsc: 39121431
• UPC 12 Digit: 783585331140
• SKU Name: hubw 074011343

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
