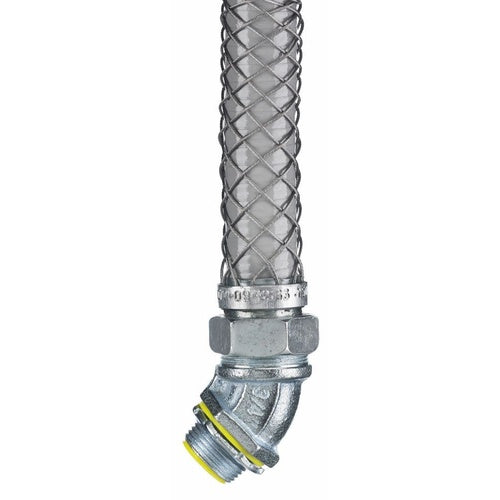

Hubbell 074093562 45D Sealtite Grip, 1/2", Insulated, W/Mesh

Overview

Hubbell 074093562 45D Sealtite Grip, 1/2", Insulated, W/Mesh

Product Specifications

• UPC: 78358533208
• Approval: UL, CSA
• Used On: Flexible Metallic Conduit
• Additional Information: Connector Size 1.34 Inch Dia; Operating Temperature -30 to 225 Deg F; Application Hazardous Location
• Catalog Number: 074093562
• Brand Name: PolyTuff[R]
• Trade Size: 1/2 Inch NPT
• Connector Type: 45 Deg Male
• Connector Material: Plated Steel
• Throat Type: Insulated
• Mesh Length: 3-1/2 Inch
• Mesh Material: Stainless Steel
• Catalog Description: KELLEMS WIRE MANAGEMENT, LIQUIDTIGHT SYSTEM, 45 DEGREE, 1/2", INSULATED WITH MESH
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Flexible Metallic Conduit Used on; 3-1/2 Inch Mesh Length; UL, CSA Approval; 45 Deg Male Connector Type; 1/2 Inch NPT Trade Size; Insulated Throat Type; Stainless Steel Mesh Material; Plated Steel Connector Material; POLYTUFF[R]I Brand; Connector Size 1.34 Inch Dia; Operating Temperature -30 to 225 Deg F; Application Hazardous Location
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Liquidtight Flexible Conduit Connector with Grip
• Unspsc: 39121420
• UPC 12 Digit: 783585332086
• SKU Name: hubw 074093562

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
