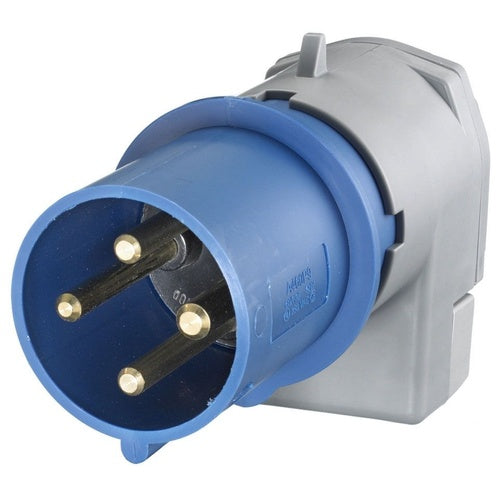

Hubbell A460P9 Pin And Sleeve, Iec, Plug, 3P4W, 60A 3P 250V, Low-Profile

Overview

Hubbell A460P9 Pin And Sleeve, Iec, Plug, 3P4W, 60A 3P 250V, Low-Profile

Product Specifications

• UPC: 78358550780
• Maximum Cable Outer Diameter: 1.25 Inch
• Material: Nylon
• Approval: UL 1682, CSA C22.2
• Additional Information: Temperature Rating -40 to 75 Deg C
• Catalog Number: A460P9
• Type: Polarized
• Constructional Feature: Impact Resistant
• Voltage Rating: 250 V 3-Phase
• Current Rating: 60 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Minimum Cable Outer Diameter: 0.75 Inch
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, MALE, PLUG, 60A 3-PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, BLUE, LOW PROFILE
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Nylon Material; 0.75 Inch min. Cable Outer Diameter; 1.25 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682, CSA C22.2 Approval; 250 V 3-Phase Voltage Rating; 60 Ampere Current Rating; 3 Pole(S); Impact Resistant; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585507804
• SKU Name: hubw a460p9
