Hubbell B2588275 Watertight Floor Box

Overview

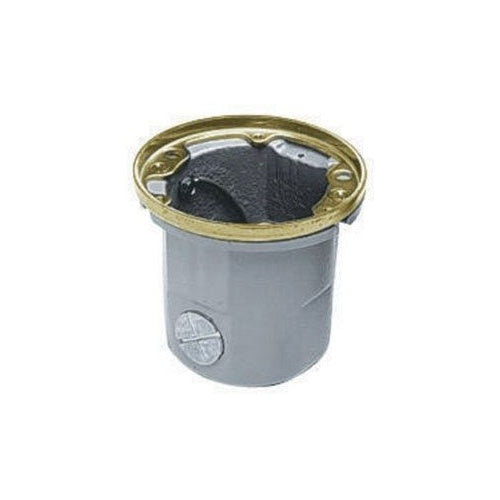

Hubbell B2588275 Watertight Floor Box

Product Specifications

• UPC: 78358587100
• Capacity: 18.5 Cu Inch
• Installation: Wood Floor
• Device Type: Data, Power
• Hub Size: (2) 1/2 Inch Bottom, (4) 3/4 Inch Sides
• Number Of Hubs: 6
• Cover Type: S2525, S2725, S2925, S3325, S3525, S3725, S3925
• Cover Mounting: Carpet Flange
• Approval: UL, CSA
• Additional Information: Includes Debris Cover, Closure Plug
• Catalog Number: B2588275
• Brand Name: ScrubShield[R]
• Type: Non-Adjustable
• Shape: Round
• Depth: 3.75 Inch
• Material: Cast Iron
• Number Of Gangs: 1
• Service Type: Single Service
• Catalog Description: FLUSH WOODEN FLOOR BOX SERIES, 1-GANG, ROUND, CAST IRON BOX, NON-ADJUSTABLE, SINGLE SERVICE, BRASS TOP
• Category: Floor Boxes & Accessories
• Full Technical Description: Non-Adjustable Type; Cast Iron Material; 3.75 Inch; Round Shape; (2) 1/2 Inch Bottom, (4) 3/4 Inch Sides Hub Size; Wood Floor Installation; 6 Hub(S); 1 Gang(S); UL, CSA Approval; S2525, S2725, S2925, S3325, S3525, S3725, S3925 Cover Type; 18.5 Cu Inch Capacity; Single Service Service Type; Data, Power Device Type; Carpet Flange Cover Mounting; SCRUBSHIELD[R] Brand; Includes Debris Cover, Closure Plug
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Floor Box
• Unspsc: 39121307
• UPC 12 Digit: 783585871004
• SKU Name: hubw b2588275

Resources

• Manufacturer Spec Sheet
• Technical Drawing
