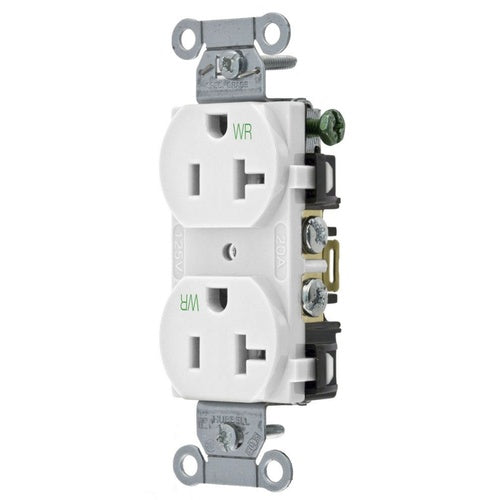

Hubbell BR20WHIWR 20A 125V Duplex Water-Resistant Commercial Grade Receptacle White

Overview

Hubbell BR20WHIWR 20A 125V Duplex Water-Resistant Commercial Grade Receptacle White

Product Specifications

• UPC: 78358514466
• Ground Type: Grounding
• Material: Nylon (Face/Base)
• Color: White
• Wiring: Back, Side
• Grade: Commercial, Specification
• Approval: UL 498, CSA 22.2, FSUL WC596, NEC
• Additional Information: Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Catalog Number: BR20WHIWR
• Type: Smooth Face Duplex
• Constructional Feature: Weather Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, WEATHER-RESISTANT DUPLEX, COMMERCIAL/INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5- 20R, WHITE, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Smooth Face Duplex Type; Nylon (Face/Base) Material; White Color; 5-20R Configuration; 3 Wire(S); Commercial, Specification Grade; UL 498, CSA 22.2, FSUL WC596, NEC Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Weather Resistant; Back, Side Wiring; Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585144665
• SKU Name: hubw br20whiwr

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
