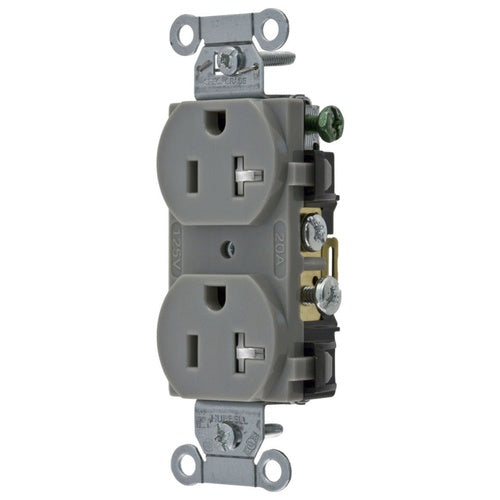

Hubbell CR20GRYTR 20A 125V Duplex TAMPer-Resistant Receptacle Gray

Overview

Hubbell CR20GRYTR 20A 125V Duplex Tamper-Resistant Receptacle Gray

Product Specifications

• UPC: 78358514428
• Ground Type: Grounding
• Material: Nylon (Face/Base)
• Color: Gray
• Wiring: Side
• Grade: Commercial, Specification
• Approval: UL 498, CSA C22.2, FSUL WC596
• Additional Information: Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Catalog Number: CR20GRYTR
• Type: Smooth Face Duplex
• Constructional Feature: Tamper Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE TAMPER-RESISTANT DUPLEX RECEPTACLE, COMMERCIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R
• Category: Receptacles & Surge Protectors
• Full Technical Description: Smooth Face Duplex Type; Nylon (Face/Base) Material; Gray Color; 5-20R Configuration; 3 Wire(S); Commercial, Specification Grade; UL 498, CSA C22.2, FSUL WC596 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Tamper Resistant; Side Wiring; Contact Material Brass; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585144283
• SKU Name: hubw cr20grytr

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
