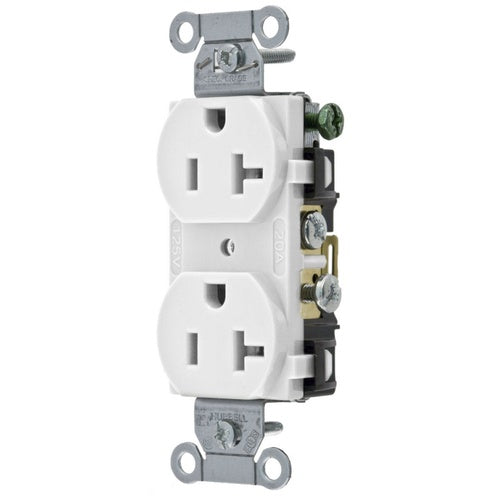

Hubbell CR20WHI 20A 125V Duplex Commercial Grade Receptacle White

Overview

Hubbell CR20WHI 20A 125V Duplex Commercial Grade Receptacle White

Product Specifications

• UPC: 78358590017
• Ground Type: Grounding
• Material: Nylon
• Color: White
• Wiring: Side
• Grade: Commercial
• Approval: UL, CSA
• Additional Information: Power Rating 1 HP; Overall Dimension 1.32 Inch Length x 0.83 Inch Width x 3.28 Inch Height; Number of Phases 1; Dielectric Strength 2 Volt; Wire Size 14 to 10 AWG; Mounting Type Screw; Temperature Rating -40 to 75 Deg C
• Catalog Number: CR20WHI
• Type: Standard, Duplex
• Constructional Feature: Smooth Face
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, COMMERCIAL GRADE, 2-POLE3-WIRE GROUNDING, 20A 125V, 5-20R, WHITE, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Standard, Duplex Type; Nylon Material; White Color; 5-20R Configuration; 3 Wire(S); Commercial Grade; UL, CSA Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Smooth Face; Side Wiring; Power Rating 1 HP; Overall Dimension 1.32 Inch Length X 0.83 Inch Width X 3.28 Inch Height; Number of Phases 1; Dielectric Strength 2 Volt; Wire Size 14 to 10 AWG; Mounting Type Screw; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585900179
• SKU Name: hubw cr20whi

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
