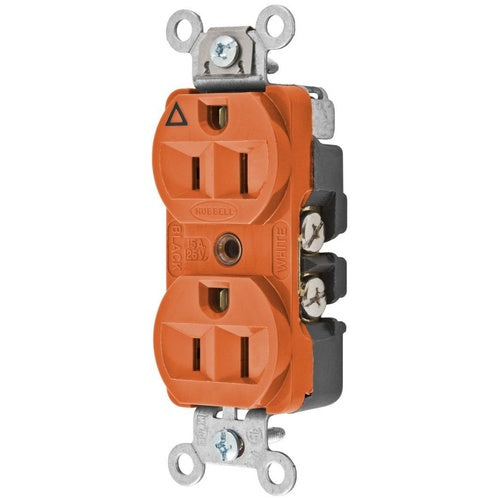

Hubbell CR5252IG 15A 125V Duplex Isolated Ground Receptacle

Overview

Hubbell CR5252IG 15A 125V Duplex Isolated Ground Receptacle

Product Specifications

• UPC: 78358538735
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Orange
• Wiring: Back, Side
• Grade: Heavy Duty, Construction, Commercial
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: CR5252IG
• Brand Name: HBL[R], Hubbell-Pro[TM]
• Type: Finder Groove Face Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, HUBBELL-PRO HEAVY DUTY, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, ORANGE, SINGLE PACK, ISOLATED GROUND.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Finder Groove Face Duplex Type; Nylon (Face), Pbt (Base) Material; Orange Color; 5-15R Configuration; 3 Wire(S); Heavy Duty, Construction, Commercial Grade; UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 125 Volt AC Voltage Rating; 15 Amp Current Rating; Isolated Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Hubbell-PRO[TM], HBL[R] Brand; Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585387352
• SKU Name: hubw cr5252ig

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
