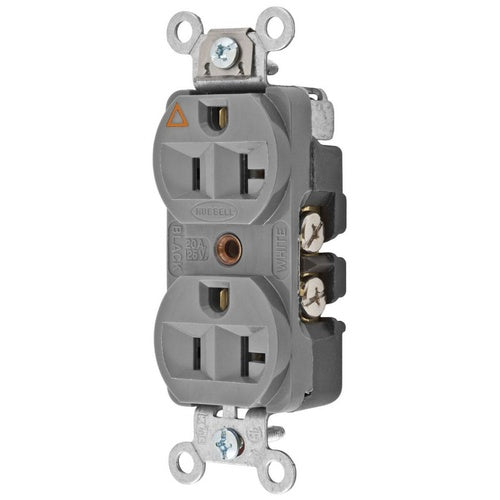

Hubbell CR5352IGGY 20A 125V Duplex Isolated Ground Receptacle Gray

Overview

Hubbell CR5352IGGY 20A 125V Duplex Isolated Ground Receptacle Gray

Product Specifications

• UPC: 78358538719
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Material: Nylon (Face), Polybutylene Terephthalate (Base)
• Color: Gray
• Wiring: Back, Side
• Grade: Heavy-Duty, Construction
• Approval: UL 498, CSA C22.2, FSUL WC596
• Additional Information: Contact Material Brass Alloy; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Catalog Number: CR5352IGGY
• Brand Name: Style Line[R], HBL[R]
• Type: Finder Groove Face Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DUPLEX RECEPTACLE, HUBBELL-PRO HEAVY DUTY, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R, ISOLATED GROUND
• Category: Receptacles & Surge Protectors
• Full Technical Description: Finder Groove Face Duplex Type; Nylon (Face), Polybutylene Terephthalate (Base) Material; Gray Color; 5-20R Configuration; 3 Wire(S); Heavy-Duty, Construction Grade; UL 498, CSA C22.2, FSUL WC596 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Contact Material Brass Alloy; Strap Material Galvanized Steel; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585387192
• SKU Name: hubw cr5352iggy

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
