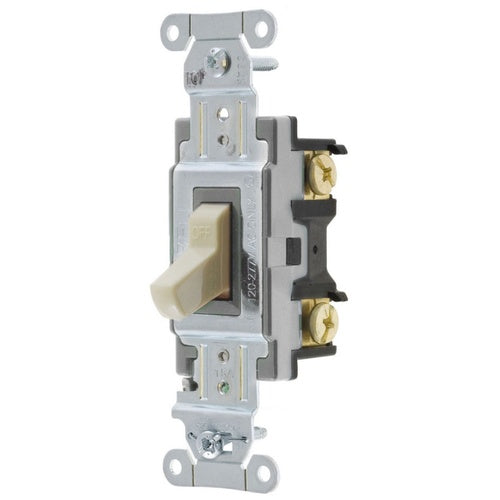

Hubbell CSB115I 15A 120/277V Sp Toggle Switch Ivory

Overview

Hubbell CSB115I 15A 120/277V Sp Toggle Switch Ivory

Product Specifications

• UPC: 78358515376
• Color: Ivory
• Wiring: Back, Side
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Application: Commercial
• Approval: UL, CSA
• Additional Information: Temperature Rating -40 to 75 Deg C; Includes Mounting Screw
• Catalog Number: CSB115I
• Model: CSB
• Type: Toggle
• Current Rating: 15 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 0.5 HP at 120 V, 2 HP at 277 V
• Operation Type: Single Pole
• Material: Thermoset (Body), Nylon (Toggle)
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, TOGGLE SWITCH, COMMERCIAL GRADE, SINGLE POLE, 15A 120/277V AC, BACK AND SIDE WIRED, IVORY
• Category: General Purpose Switches
• Full Technical Description: Toggle Type; Thermoset (Body), Nylon (Toggle) Material; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; Ivory Color; Single Pole Operation Type; UL, CSA Approval; Commercial Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 V, 2 HP at 277 V Power Rating; Back, Side Wiring; Temperature Rating -40 to 75 Deg C; Includes Mounting Screw; CSB Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585153766
• SKU Name: hubw csb115i
