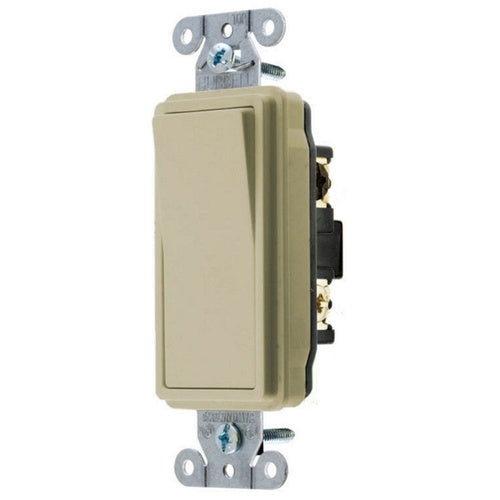

Hubbell DS320I 20A, 120/277V 3-Way Decorator Switch Ivory

Overview

Hubbell DS320I 20A, 120/277V 3-Way Decorator Switch Ivory

Product Specifications

• UPC: 78358510839
• Material: Thermoplastic
• Color: Ivory
• Size: 1.43 Inch W x 1.53 Inch D x 4.27 Inch H
• Application: Specification Grade
• Approval: UL, CSA
• Additional Information: Power Rating 1 HP at 120 VAC, 2 HP at 277 VAC; Temperature Rating -40 to 75 Deg C
• Catalog Number: DS320I
• Brand Name: Style Line[R]
• Model: DS
• Type: Standard Rocker
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Operation Type: Three Way
• Wiring: Back, Side
• Catalog Description: DECORATOR SWITCH, SPECIFICATION GRADE, THREE WAY, 20A 120/277V AC, BACK AND SIDE WIRED
• Category: General Purpose Switches
• Full Technical Description: Standard Rocker Type; Thermoplastic Material; 1.43 Inch W X 1.53 Inch D X 4.27 Inch H Size; Ivory Color; Three Way Operation Type; UL, CSA Approval; Specification Grade Application; 120 to 277 VAC Voltage Rating; 20 Ampere Current Rating; Back, Side Wiring; Style LINE[R] Brand; Power Rating 1 HP at 120 VAC, 2 HP at 277 VAC; Temperature Rating -40 to 75 Deg C; DS Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Decorator AC Switch
• Unspsc: 39122226
• UPC 12 Digit: 783585108391
• SKU Name: hubw ds320i

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
