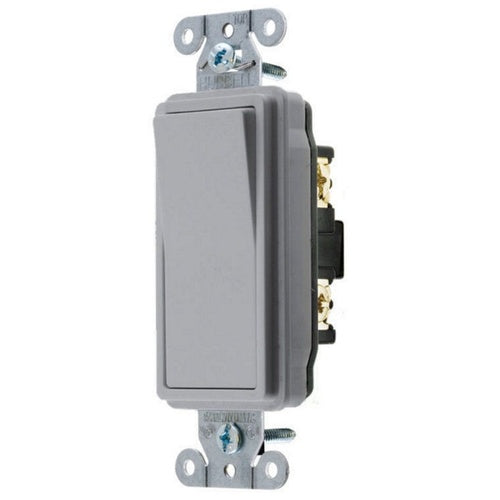

Hubbell DS420GY 4W 20A, 120/277V 120V Decorator Switch Gray

Overview

Hubbell DS420GY 4W 20A, 120/277V 120V Decorator Switch Gray

Product Specifications

• UPC: 78358515448
• Material: Thermoplastic
• Color: Gray
• Size: 1.72 Inch W x 1.67 Inch D x 4.27 Inch H
• Application: Specification Grade
• Approval: UL, CSA
• Additional Information: Power Rating 1 HP at 120 VAC, 2 HP at 277 VAC; Temperature Rating -40 to 75 Deg C
• Catalog Number: DS420GY
• Brand Name: Style Line[R]
• Model: DS
• Type: Standard Rocker
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Operation Type: Four Way
• Wiring: Back, Side
• Catalog Description: DECORATOR SWITCH, SPECIFICATION GRADE, FOUR WAY, 20A 120/277V AC, BACK AND SIDE WIRED
• Category: General Purpose Switches
• Full Technical Description: Rocker Type; Thermoplastic (Top/Base/Rocker) Material; 1.73 Inch Width X 1.68 Inch Depth X 4.28 Inch Height Size; Gray Color; 4-Way Operation Type; UL, CSA Approval; Specification Grade, General Purpose Application; 120 to 277 Volt AC Voltage Rating; 20 Amp Current Rating; Back, Side Wiring; Style LINE[R] Brand; Power Rating 1 HP at 120 Volt AC, 2 HP at 208/240/277 Volt AC; Dielectric Voltage Rating 1500 Volt AC For 1 Minute; Copper Wire Size 14 to 10 AWG Solid and Stranded; Operating Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Decorator AC Switch
• Unspsc: 39122226
• UPC 12 Digit: 783585154480
• SKU Name: hubw ds420gy
