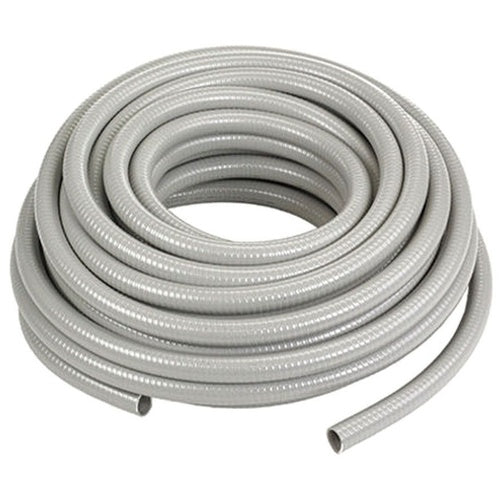

Hubbell G1100 1" Liquidtite Flex Non-Metallic Conduit P/Ft

Overview

Hubbell G1100 1" Liquidtite Flex Non-Metallic Conduit P/Ft

Product Specifications

• UPC: 78358533365
• Inner Diameter: 1.05 Inch
• Outer Diameter: 1.3 Inch
• Wall Thickness: 0.25 Inch
• Temperature Rating: 0 to 140 Deg F (Wet/Dry), 0 to 158 Deg F (Oil)
• Material: Extruded PVC
• Color: Gray
• Weight: 0.27 Pound
• Application: Wet/Damp Location
• Applicable Standard: NEC 351B
• Approval: UL, CSA
• Catalog Number: G1100
• Additional Information: Voltage Rating 600 Volt; Enclosure Rating IP66
• Brand Name: Wiring Device-Kellems
• Model: G
• Type: Extra Flexible
• Trade Size: 1 Inch
• Constructional Feature: Chemical Resistant
• Length: 100 Foot
• Bending Radius: 5 Inch
• Catalog Description: KELLEMS WIRE MANAGEMENT, LIQUIDTIGHT SYSTEM, NON-METALLIC POLYTUFF I CONDUIT, GRAY, 1", 100 FEET
• Category: Liquid Tight Conduit
• Full Technical Description: Extra Flexible Type; Extruded PVC Material; Gray Color; 100 Foot; 1.05 Inch Inner Diameter; 1.3 Inch Outer Diameter; UL, CSA Approval; NEC 351B Applicable Standard; Wet/Damp Location Application; 0 to 140 Deg F (Wet/Dry), 0 to 158 Deg F (Oil) Temperature Rating; 0.27 Pound Weight; 1 Inch Trade Size; Chemical Resistant; 0.25 Inch Wall Thickness; 5 Inch Bending Radius; POLYTUFF[R]I Brand; Voltage Rating 600 Volt; Enclosure Rating IP66; G Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Liquidtight Nonmetallic Conduit
• Unspsc: 39131706
• UPC 12 Digit: 783585333656
• SKU Name: hubw g1100

Resources

• Manufacturer Spec Sheet
