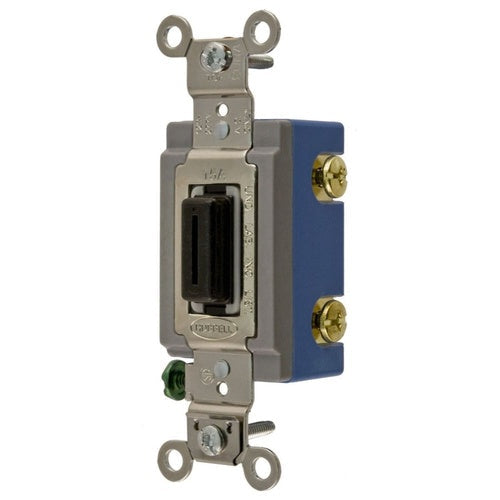

Hubbell HBL1201L Single Pole Toggle, Industrial Grade, 15A 120/277V, Lock

Overview

Hubbell HBL1201L Single Pole Toggle, Industrial Grade, 15A 120/277V, Lock

Product Specifications

• UPC: 78358543008
• Wiring: Back, Side
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Application: Industrial
• Approval: UL, CSA, Fed Spec WS896
• Additional Information: Wire Size 14 to 10 AWG Copper Solid/Stranded; Contact Material Silver Alloy; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL1201L
• Type: Keyed Locking, Extra Heavy Duty
• Current Rating: 15 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 0.5 HP at 120 VAC, 1.5 HP at 208 VAC, 2 HP at 240/277 VAC
• Operation Type: 1-Pole
• Material: Thermoset (Base), Metallic (Lock)
• Color: Black
• Catalog Description: SWITCHES AND LIGHTING CONTROLS,EXTRA HEAVY DUTY INDUSTRIAL GRADE, LOCKING TOGGLE SWITCHES, GENERAL PURPOSE AC, SINGLE POLE, 15A 120/277V AC, BACK AND SIDE WIRED, BLACK KEY GUIDE
• Category: General Purpose Switches
• Full Technical Description: Keyed Locking, Extra Heavy Duty Type; Thermoset (Base), Metallic (Lock) Material; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; Black Color; 1-Pole Operation Type; UL, CSA, Fed Spec WS896 Approval; Industrial Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 VAC, 1.5 HP at 208 VAC, 2 HP at 240/277 VAC Power Rating; Back, Side Wiring; HBL[R] Brand; Wire Size 14 to 10 AWG Copper Solid/Stranded; Contact Material Silver Alloy; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122224
• UPC 12 Digit: 783585430089
• SKU Name: hubw hbl1201l
