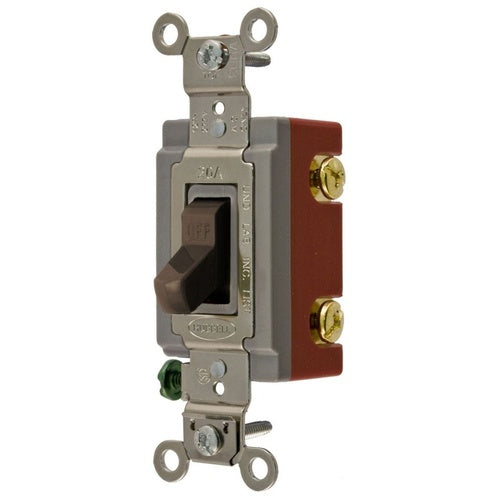

Hubbell HBL1221 Single Pole Toggle, Industrial Grade, 20A 120/277V, Brown

Overview

Hubbell HBL1221 Single Pole Toggle, Industrial Grade, 20A 120/277V, Brown

Product Specifications

• UPC: 78358543132
• Material: Thermoset (Body), Nylon (Toggle)
• Color: Brown
• Wiring: Back, Side
• Size: 1.31 Inch Width x 1.13 Inch Depth x 4.06 Inch Height
• Wall Plate Included: No
• Application: Extra Heavy Duty, Industrial
• Approval: UL 20, CSA
• Additional Information: Wire Size 14 to 10 AWG (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification WS-896, NEMA WD-1
• Catalog Number: HBL1221
• Brand Name: Wiring Device-Kellems
• Model: HBL1221
• Type: Toggle
• Current Rating: 20 Amp
• Voltage Rating: 120 to 277 Volt AC
• Power Rating: 1 HP at 120 Volt, 2 HP at 277 Volt
• Operation Type: 1-Pole
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, EXTRA HEAVY DUTY INDUSTRIAL GRADE, TOGGLE SWITCHES, GENERAL PURPOSE AC, SINGLE POLE, 20A 120/277V AC, BACK AND SIDE WIRED, BROWN TOGGLE
• Category: General Purpose Switches
• Full Technical Description: 1-Pole, Extra Heavy Duty Type; 4.06 Inch Length X 1.31 Inch Width X 1.87 Inch Height Size; UL, CSA Approval; Industrial Application; 120/277 Volt AC Voltage Rating; Back and Side Mounting; 20 Amp Current Rating; Thermoset (Top/Base), Brass (Screw), Silver Alloy (Contact) Body Material; 14 to 10 AWG Terminal Type; Nylon Toggle Material; Color Brown (Toggle), Red (Base), Green (Screw); Dielectric Voltage 1500 Volt AC; Operating Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Specialty Toggle Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585431321
• SKU Name: hubw hbl1221
