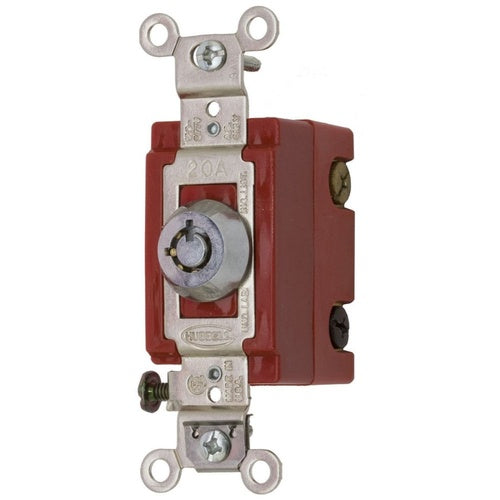

Hubbell HBL1223RKL 20A Industrial Grade 3W Key Lock Switch

Overview

Hubbell HBL1223RKL 20A Industrial Grade 3W Key Lock Switch

Product Specifications

• UPC: 78358543199
• Material: Thermoset (Body), Nylon (Toggle)
• Color: Chrome
• Wiring: Back, Side
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Application: Industrial
• Approval: UL, CSA
• Additional Information: Temperature Rating -40 to 75 Deg C; Includes Ground Screw, Grounding Clip
• Catalog Number: HBL1223RKL
• Brand Name: HBL[R]
• Model: HBL1223
• Type: Barrel Keyed Locking
• Current Rating: 20 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 1 HP at 120 V, 2 HP at 277 V
• Operation Type: Three Way
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, BARREL KEY LOCKING SWITCH, GENERAL PURPOSE AC, THREE WAY, 20A 120/277V AC, BACK AND SIDE WIRED, CHROME
• Category: General Purpose Switches
• Full Technical Description: Keyed Locking, Extra Heavy Duty Type; Thermoset Material; 1.25 Inch Width X 2.02 Inch Depth X 4.06 Inch Height Size; Red (Body), Chrome (Key Guide) Color; 1-Pole, 3-Way Operation Type; UL, CSA Approval; Industrial Grade Application; 120/277 Volt AC Voltage Rating; 20 Amp Current Rating; 1 HP at 120 Volt AC, 2 HP at 208/240/277 Volt AC Power Rating; Back, Side Wiring; HBL[R] Brand; Dielectric Voltage Rating 1500 Volt AC For 1 Minute; Wire Size 14 to 10 AWG Solid/Stranded Copper; Temperature Rating 75 Deg C; Applicable Standard Federal Specification W-S-896
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122224
• UPC 12 Digit: 783585431994
• SKU Name: hubw hbl1223rkl
