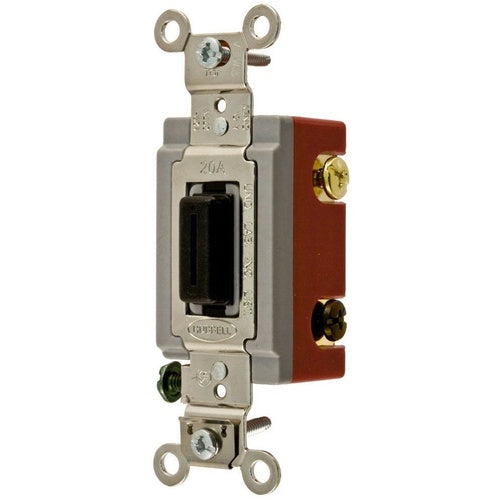

Hubbell HBL1224L 4Way 20A Industrial Grade Locking Ac Switch

Overview

Hubbell HBL1224L 4Way 20A Industrial Grade Locking Ac Switch

Product Specifications

• UPC: 78358543210
• Material: Thermoset (Body), Nylon (Toggle)
• Color: Black
• Wiring: Back, Side
• Size: 1.31 Inch Width x 1.13 Inch Depth x 4.06 Inch Height
• Wall Plate Included: No
• Application: Extra Heavy Duty, Industrial
• Approval: UL 20, CSA
• Additional Information: Wire Size 14 to 10 AWG (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification WS-896, NEMA WD-1
• Catalog Number: HBL1224L
• Brand Name: Wiring Device-Kellems
• Model: HBL1224
• Type: Toggle, Keyed Locking
• Current Rating: 20 Amp
• Voltage Rating: 120 to 277 Volt AC
• Power Rating: 1 HP at 120 Volt, 2 HP at 277 Volt
• Operation Type: 4-Way
• Catalog Description: SWITCHES AND LIGHTING CONTROLS,EXTRA HEAVY DUTY INDUSTRIAL GRADE, LOCKING TOGGLE SWITCHES, GENERAL PURPOSE AC, FOUR WAY, 20A 120/277V AC, BACK AND SIDE WIRED, BLACK KEY GUIDE
• Category: General Purpose Switches
• Full Technical Description: Toggle, Keyed Locking Type; Thermoset (Body), Nylon (Toggle) Material; 1.31 Inch Width X 1.13 Inch Depth X 4.06 Inch Height Size; Black Color; 4-Way Operation Type; UL 20, CSA Approval; Extra Heavy Duty, Industrial Application; 120 to 277 Volt AC Voltage Rating; 20 Amp Current Rating; 1 HP at 120 Volt, 2 HP at 277 Volt Power Rating; Back, Side Wiring; No Wall Plate Included; HBL[R] Brand; Wire Size 14 to 10 AWG (Solid/Stranded); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94V-2; Applicable Standard Federal Specification Ws-896, NEMA Wd-1; HBL1224 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122224
• UPC 12 Digit: 783585432106
• SKU Name: hubw hbl1224l
