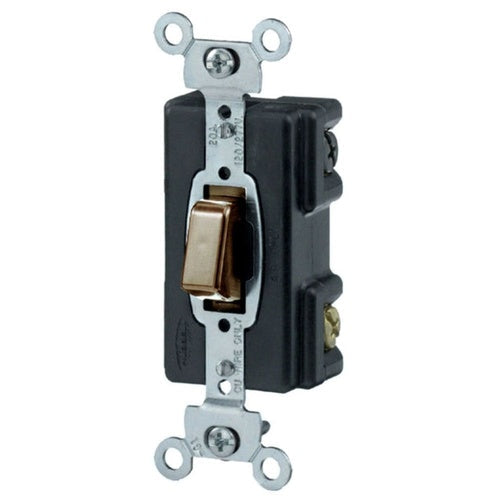

Hubbell HBL1284 Brown 4Way 20A Ac Push Button Switch

Overview

Hubbell HBL1284 Brown 4Way 20A Ac Push Button Switch

Product Specifications

• UPC: 78358501689
• Material: Thermoset (Body), Nylon (Toggle)
• Color: Brown
• Wiring: Side
• Size: 1.5 Inch W x 0.97 Inch D x 3.28 Inch H
• Application: Industrial
• Approval: UL, CSA
• Additional Information: Temperature Rating -40 to 75 Deg C; Includes Ground Screw
• Catalog Number: HBL1284
• Brand Name: PresSwitch[R]
• Model: HBL1284
• Type: Pushbutton
• Current Rating: 20 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 1 HP at 120 V, 2 HP at 277 V
• Operation Type: Four Way
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, PRESSWITCH, GENERAL PURPOSE AC, FOUR WAY, 20A 120/277V AC, SCREW TERMINALS, BROWN
• Category: Pressure Switches
• Full Technical Description: Pushbutton Type; Thermoset (Body), Nylon (Toggle) Material; 1.5 Inch W X 0.97 Inch D X 3.28 Inch H Size; Brown Color; Four Way Operation Type; UL, CSA Approval; Industrial Application; 120 to 277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 V, 2 HP at 277 V Power Rating; Side Wiring; PRESSWITCH[R] Brand; Temperature Rating -40 to 75 Deg C; Includes Ground Screw; HBL1284 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Standard AC Switch
• Unspsc: 39122216
• UPC 12 Digit: 783585016894
• SKU Name: hubw hbl1284

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
