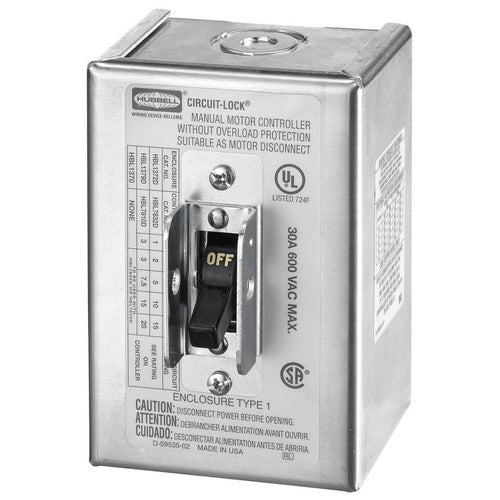

Hubbell HBL1370 Met Nema1 Switch Enclosure

Overview

Hubbell HBL1370 Met Nema1 Switch Enclosure

Product Specifications

• UPC: 78358501698
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt AC; Temperature Rating -40 to 75 Deg C; Number of Equipment Grounds 2
• Catalog Number: HBL1370
• Brand Name: Wiring Device-Kellems
• Type: Switch
• Breaker/Switch Current Rating: 30 Amp
• Size: 3.2 Inch Width x 2.42 Inch Depth x 4.72 Inch Height
• Enclosure: NEMA 1
• Material: Aluminum (Base and Cover)
• Mounting: Surface
• Catalog Description: SWITCHES AND LIGHTING CONTROLS, INDUSTRIAL GRADE, TOGGLE SWITCHES, MOTOR DISCONNECT ACCESSORIES, NEMA 1 ENCLOSURE ONLY, 40A 600V AC
• Category: Manual Motor Switches & Accessories
• Full Technical Description: Switch Type; Aluminum (Base and Cover) Material; 3.2 Inch Width X 2.42 Inch Depth X 4.72 Inch Height Size; UL, CSA Approval; Surface Mounting; NEMA 1 Enclosure; 30 Amp Breaker/Switch Current Rating; CIRCUIT-LOCK[R] Brand; Voltage Rating 600 Volt AC; Temperature Rating -40 to 75 Deg C; Number of Equipment Grounds 2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Circuit Breaker/Disconnect Switch Enclosure
• Unspsc: 39121521
• UPC 12 Digit: 783585016986
• SKU Name: hubw hbl1370

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
