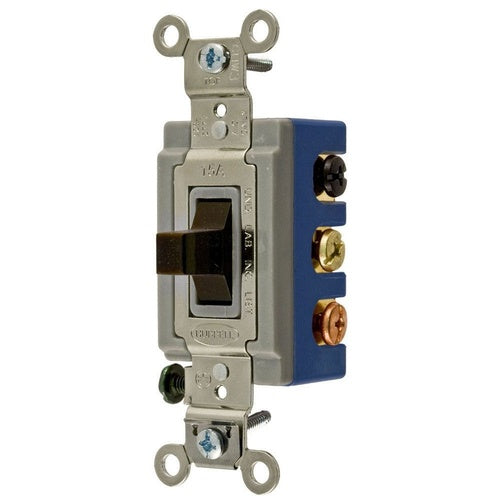

Hubbell HBL1382 Dpdt 15A Brown Ac Switch

Overview

Hubbell HBL1382 Dpdt 15A Brown Ac Switch

Product Specifications

• UPC: 78358543254
• Contact Configuration: DPDT
• Handle Type: Toggle
• Color: Brown
• Size: 1.31 Inch W x 1.13 Inch D x 4.06 Inch H
• Wiring: Back, Side
• Application: Heavy-Duty, Industrial, Specification Grade
• Approval: UL, CSA
• Additional Information: Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL1382
• Brand Name: HBL[R]
• Model: HBL1382
• Type: 3-Position 2-Circuit
• Current Rating: 15 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 0.5 HP at 120 V, 2 HP at 277 V
• Operation Type: Maintained
• Catalog Description: INDUSTRIAL GRADE TOGGLE SWITCH, DPDT CENTER OFF, 15A 120/277V, BROWN TOGGLE.
• Category: General Purpose Switches
• Full Technical Description: 3-Position 2-Circuit Type; 1.31 Inch W X 1.13 Inch D X 4.06 Inch H Size; Brown Color; DPDT Contact Configuration; Maintained Operation Type; Toggle Handle Type; UL, CSA Approval; Heavy-Duty, Industrial, Specification Grade Application; 120 to 277 VAC Voltage Rating; 15 Ampere Current Rating; 0.5 HP at 120 V, 2 HP at 277 V Power Rating; Back, Side Wiring; HBL[R] Brand; Material Thermoset (Base), Nylon (Toggle); Temperature Rating -40 to 75 Deg C; HBL1382 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Double Throw AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 783585432540
• SKU Name: hubw hbl1382
